Description

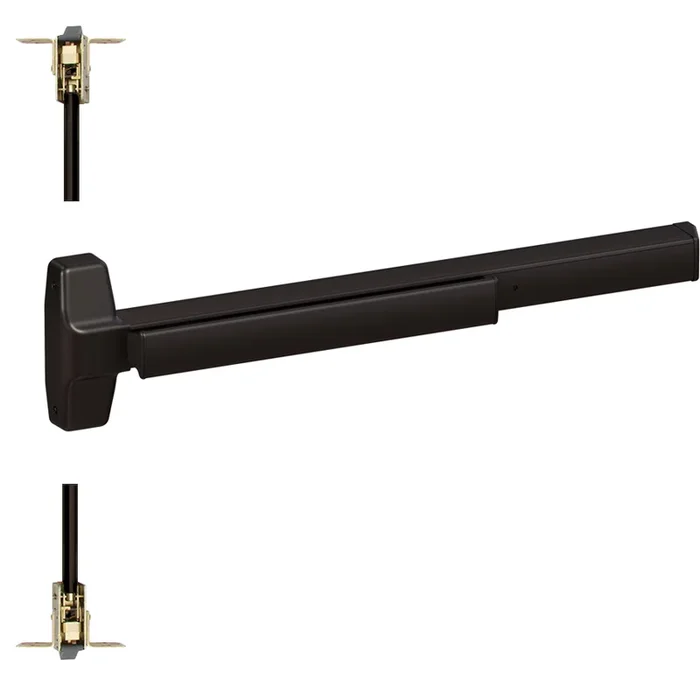

Von Duprin 7847EO-710-48 78 Series CVR Exit Device, No Trim, 48x84in, Grade 1, Dark Bronze
Von Duprin 7847EO-710-48 78 Series CVR Exit Device offers a robust solution for securing single or double metal doors. Designed with a concealed vertical rod mechanism, this exit device is UL listed for panic exit hardware and certified to ANSI/BHMA A156.3, Grade 1 standards, ensuring top-tier performance and safety. This model features an exit-only function, making it ideal for emergency exits where egress is the priority. The center case measures 7-7/8″ x 2-3/4″ x 2-3/8″, accommodating door sizes from 2′ 6″ to 4′. With a deadlocking latch bolt that provides a 5/8″ throw, security is significantly enhanced. The device’s centerline is conveniently positioned at 39-13/16″ from the finished floor, ensuring compliance with accessibility standards. Installation is straightforward, thanks to included fasteners and a screw pack suitable for 1-3/4″ and 2-1/4″ thick doors. Available in a dark bronze finish, this device not only performs exceptionally but also complements a variety of architectural styles. Optional electrified and mechanical features can be integrated, enhancing functionality further.For reliable and efficient access control, the Von Duprin 7847EO-710-48 is an excellent choice for commercial applications requiring high standards of safety and durability.
78 Series CVR (Concealed Vertical Rod) Exit Device, No Trim, 48in x 84in, Grade 1, 710/US11P Dark Bronze
Notice: The info below is not item specific.
7847 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. These are certified to ANSI/BHMA A156.3 2014, grade 1.
Specifications:
- Device Functions: Device ships EO/DT/NL; Field selectable; for L remove NL drive screw from device
- Center Case: 7-7/8″ x 2-3/4″ x 2-3/8″ (200mm x 70mm x 60mm)
- Device lengths:
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Device Centerline From Finished Floor:
- 39-13/16″ (1011mm)
- 39-11/16″ (1008mm) with mullion
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
- Projection:
- Pushbar neutral – 3-13/16″ (97mm)
- Pushbar depressed – 3-1/16″ (78mm)
- Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- Electrified Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- E: Electric locking and unlocking trim; no cylinder override
- ALK: Quiet electric latch retraction
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Mechanical Options:
- GBK: Glass bead kit
- LBR: Less bottom rod
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- Dogging Options:
- Hex key dogging standard
- CD: Cylinder dogging
- LD: Less dogging
- QEL: QEL options available
- Strikes:
- 338: Top—unfinished
- 385A: Bottom—unfinished
Trim Functions:
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- EO: Exit only
- L: Lever (classroom). Key locks and unlocks; or key unlocks, then relocks when key is removed. 1-1/4″ mortise cylinder. Handed, reversible lever
- L-BE: Lever – blank escutcheon. Always operable (no cylinder). Electrified lever operation available
- L-DT: Lever, rigid – dummy trim. Pull when dogged
- L-NL: Lever, rigid – night latch
- NL: Night latch. Key retracts. Rim cylinder
- NL-OP: Night latch cylinder assembly, optional pull. Key retracts latch bolt, optional pull required. Rim cylinder
- TL: Turn lever. Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim). 1-1/4″ mortise cylinder
- TL-BE: Turn lever – blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 619 – Satin nickel
- 625 – Bright chrome
- 626 – Satin chrome
- 628 – Aluminum, anodized
- 630 – Satin stainless steel
- 643e – Aged bronze
- 710 – Dark brown, anodized
- 711 – Matte black
Features
- Center Case: 7-7/8″ x 2-3/4″ x 2-3/8″ (200mm x 70mm x 60mm)
- Projection:
- 39-13/16″ (1011mm)
- Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
- RX: Request to exit
- 4′: 3′ to 4′ (914mm to 1219mm) door size
- Latch Bolt: Deadlocking, 5/8″ (15.875mm) throw
- GBK: Glass bead kit
- LD: Less dogging
- SNB: Sex bolts
- Pushbar Length: 3′ 18″ (457mm), 4′ 24″ (610mm)
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Device lengths:
- Device Centerline From Finished Floor:
- Mechanical Options:
- Pushbar neutral – 3-13/16″ (97mm)
- Electrified Options:
- LX: Latch bolt monitor switch
- Hex key dogging standard
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
- E: Electric locking and unlocking trim; no cylinder override
- Strikes:
- ALK: Quiet electric latch retraction
- 338: Top—unfinished
- Pushbar depressed – 3-1/16″ (78mm)
- Dogging Options:
- QEL: QEL options available
- 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
- 385A: Bottom—unfinished
- SEC: Security screws
- LBR: Less bottom rod
- CD: Cylinder dogging
- Device Functions: Device ships EO/DT/NL; Field selectable; for L remove NL drive screw from device
- 39-11/16″ (1008mm) with mullion
- WH: Weep holes
Attributes
Alternate Codes: 7847EO-710-48, 7847EO71048
Category: Commercial Electric Locks, CVR Panic Devices, Electric Locks, Glass Aluminum Hardware, Lock Sets, Narrow Style Electric Locks, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Standalone/Pushbutton Locks
Center Line: 3′ 3-5/8″
Certifications: A156.3, ANSI, BHMA, UL 305
Device Width: 48″
Door Application: Panic Devices & Exit Alarms
Door Frame Type: Hollow Metal Frame
Door Thickness: 1-3/4″
Door Type: Hollow Metal
Exit Device Category: Concealed Vertical Rod Exit CVR
Finish Code: 695, 710
Finish Color: Dark Bronze, Dark Bronze Anodized, Dark Bronze/Clear Coat, Duranotic Dark Bronze, Sprayed Duranotic
Function: Exit Only
Grade: Grade 1
Handing: Field Reversible
Manufacturer: Von Duprin
Series: 78
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Stile Width: Wide Stile
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
