Description

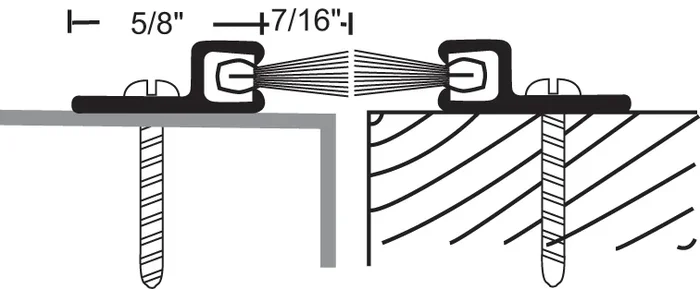

NGP 9605A (SET) 84″ Anodized Aluminum Astragal with Nylon Brush Seal
NGP 9605A (SET) 84″ Anodized Aluminum Astragal with High Temperature Nylon Brush Plus Seal offers unmatched durability and performance for commercial restroom partitions. Constructed from aluminum alloy 6063 with T5 temper, this astragal is designed to withstand extreme temperature variations, with a range from -70°F to 425°F. The premium-grade nylon brush plus seal provides exceptional protection against air infiltration, effectively enhancing energy efficiency and comfort. This product boasts excellent abrasion resistance, flexibility, and memory, making it ideal for high-traffic environments. Its moisture-resistant properties ensure longevity, while the gray nylon brush adds a sleek finish to any restroom setting. The NGP 9605A is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, confirming its reliability under rigorous conditions. Installation is straightforward, thanks to the furnished #6 x 3/4″ stainless steel sheet metal screws and slotted screw holes for easy adjustment. Please note that this astragal is not effective against water penetration and cannot replace any required fire-rated astragal by the door manufacturer. Compliant with IBC, NFPA 80, NFPA 105, and NFPA 252 standards, the NGP 9605A ensures safety and performance in critical applications. Order as a set to receive two pieces for complete coverage.
84″ Anodized Aluminum Astragal with High Temperature Nylon Brush Plus Seal
- Nylon brush plus is gray
- #6 x 3/4″ stainless steel sheet metal screws furnished
- IBC, NFPA 80, NFPA105, and NFPA 252 require the gap at the meeting edge between fire labeled doors must not exceed 1/8″
- Temperature range -70°F to 425°F
- REACH and RoHS compliant
- Not effective against water penetration
- Premium grade seals specially formulated to withstand greater temperature extremes while providing maximum protection against air infiltration
- Anodized aluminum
- Retains insecticides well
- Screw holes slotted for adjustment
- Order as set to receive two pieces
- Fire-rated Astragal Seals cannot replace any astragal required on the door by the door manufacturer to maintain its fire label
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
- Moisture resistant
- Aluminum alloy 6063, T5 temper
- Synthetic polymer: Polyamide
- Excellent abrasion resistance, flexibility and memory
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Nylon brush plus is gray
Fasteners: #6 x 3/4″ stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Fire Rated: IBC, NFPA 80, NFPA105, and NFPA 252 require the gap at the meeting edge between fire labeled doors must not exceed 1/8″
Length: 84.0″
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Resistance: Excellent abrasion resistance, flexibility and memory
Ro HS: REACH and RoHS compliant
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -70°F to 425°F
