Description
NGP 36VA 84″ Anodized Aluminum Vinyl Door Shoe with Fins
NGP 36VA 84″ Anodized Aluminum Finned Vinyl Door Shoe offers an exceptional blend of durability and functionality, ideal for commercial restroom applications. Crafted from aluminum alloy 6063 with a T5 temper, this door shoe is both lightweight and resilient. Its black vinyl component, made from thermoplastic polymer formulated with an environmentally friendly Bio-based plasticizer, enhances its moisture and flame resistance, ensuring longevity even in demanding environments. Designed to withstand temperatures ranging from 0°F to 140°F, the NGP 36VA is built to endure various climatic conditions while preventing oxidative degradation from age, heat, and UV exposure. This product features slotted screw holes for easy adjustment during installation, and it comes furnished with #6 x 3/4″ stainless steel SMS fasteners for added convenience.Certified by UL for fire safety, this door shoe complies with several industry standards, making it suitable for use with both Hollow Metal and Wood fire doors rated up to 3 hours. The anodized aluminum finish not only provides a sleek appearance but also contributes to its resistance against wear and tear. For building professionals seeking a reliable and efficient solution, the NGP 36VA delivers both performance and peace of mind.

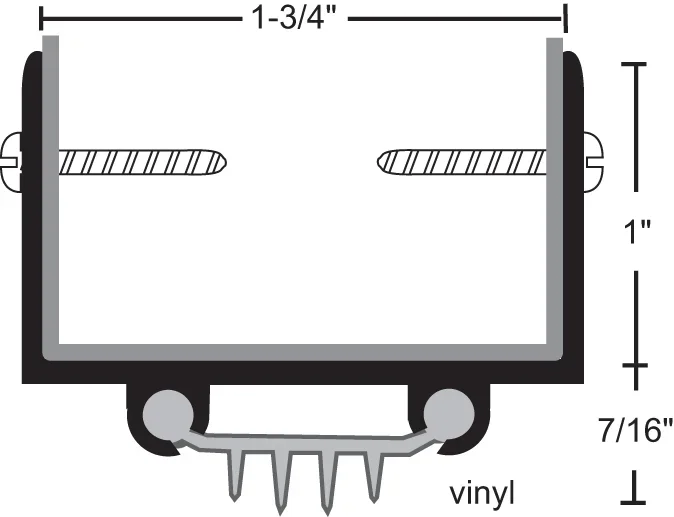

84″ Anodized Aluminum Finned Vinyl Door Shoe
- Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
- Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration
- Anodized aluminum
- Screw holes slotted for adjustment
- Flame resistant
- Temperature range 0°F to 140°F
- Moisture resistant
- Vinyl is black
- #6 x 3/4″ stainless steel SMS furnished
- Aluminum alloy 6063, T5 temper
- Economical
Attributes
Color: Vinyl is black
Fasteners: #6 x 3/4″ stainless steel SMS furnished
Finish: Anodized aluminum
Fire Rated: Flame resistant
Length: 84.0″
Material: Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
Moisture Resistant: YES
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Temperature Range: Temperature range 0°F to 140°F
