Description
NGP 425DKB 84 National Guard Products Threshold
SADDLE THRESHOLD 7 FT LENGH, 5″ WIDE, HIGH 1/2 DARK BRONZE
- #10 x 1-1/2″ FH zinc plated wood screws included

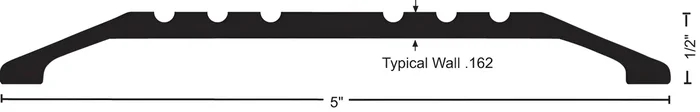

- 5″ wide x 1/2″ tall
- Fluted top
- Weight: .88 lbs./ft.
- Aluminum alloy 6063, T5 temper
- Dark bronze finish
- Typical wall thickness .162″
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Dimensions: 5″ wide x 1/2″ tall
Fasteners: #10 x 1-1/2″ FH zinc plated wood screws included
Finish: Dark bronze finish
Finish : Dark Bronze
Fire Rated: 3 Hours
Length: 84.0″
Material: Aluminum alloy 6063, T5 temper
Restrictions: Fragile
Series: NGP Thresholds
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Subtype: Threshold
Type: Hinges and Pivots
Wall Thickness: Typical wall thickness .162″
Weight: Weight: .88 lbs./ft.
