Description

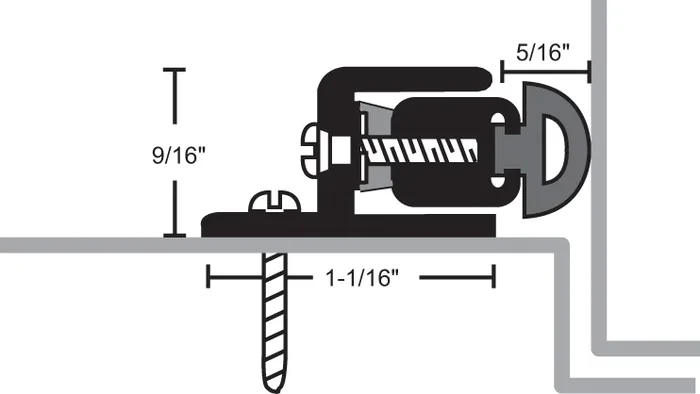

NGP 141SDKB 84″ DKB Aluminum Spring Adjustable Silicone Perimeter Seal
NGP 141SDKB 84″ DKB-finish Aluminum Spring Adjustable Silicone Perimeter Seal offers exceptional performance and durability for commercial restroom partitions. Constructed from aluminum alloy 6063 with T5 temper, this perimeter seal features a synthetic rubber polymer, Siloxane, that provides excellent flexibility and memory. Its flame and moisture-resistant properties make it ideal for demanding environments, ensuring a reliable seal in temperatures ranging from -100°F to 500°F. Designed for use in areas utilizing FM200 or Halon Fire Suppression Systems, the NGP 141SDKB meets rigorous safety standards, including BHMA certification to ANSI/BHMA A156.22 performance tests for heat and cold. The spring-loaded mechanism maintains pressure, securing the most effective seal while adjustment screws located on 10″ centers allow for easy modification without repositioning the mounting location. The silicone is elegantly finished in black, complemented by a dark bronze aluminum finish, ensuring aesthetic compatibility with various designs. Each unit comes with #6 x 3/4″ or #6 x 1-1/2″ stainless sheet metal screws for convenient installation. With its superior resistance to ozone, UV, and aging, the NGP 141SDKB is a reliable choice for anyone seeking high-quality restroom partition hardware.
84″ DKB-finish Aluminum Spring Adjustable Silicone Perimeter Seal
- Excellent flexibility and memory
- Flame resistant
- Synthetic rubber polymer: Siloxane
- BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
- Adjustment screws on 10″ centers allow adjustment without re-positioning mounting location
- Dark bronze finish
- Temperature range -100°F to 500°F, remains flexible at extreme temperatures
- Excellent resistance to ozone, UV and aging
- #6 x 3/4″ or #6 x 1-1/2″ stainless sheet metal screws furnished
- Spring-loaded to maintain pressure for the most effective seal
- Moisture resistant
- Recommended for areas using FM200 or Halon Fire Suppression Systems
- Silicone is black
- Aluminum alloy 6063, T5 temper
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold and Energy Performance
Attributes
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
Color: Silicone is black
Fasteners: #6 x 3/4″ or #6 x 1-1/2″ stainless sheet metal screws furnished
Finish: Dark bronze finish
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 84.0″
Material: Synthetic rubber polymer: Siloxane
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
