NGP 8139 84″ Mill Aluminum Threshold Assembly Instructions
NGP 8139 84″ Mill Aluminum Threshold Assembly Part is designed for durability and compliance in commercial restroom environments. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this threshold assembly measures 3″ wide and stands 3/8″ tall, making it an ideal choice for various applications. Weighing just .44 lbs. per foot, it is lightweight yet robust, ensuring ease of installation without compromising structural integrity. The mill finish provides a sleek, professional appearance while enhancing resistance to wear and tear. This threshold assembly not only meets ADA standards for accessible design but is also certified by UL for fire door applications, accommodating hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. With positive pressure certification, it ensures safety and reliability in high-traffic areas. Additionally, the NGP 8139 is ANSI/BHMA certified, having passed stringent load tests, making it a trusted choice for building professionals seeking quality and compliance. It ships conveniently via UPS, allowing for easy procurement. Choose the NGP 8139 threshold assembly to ensure a barrier-free, safe, and stylish entryway in your commercial restroom projects.
84″ Mill Aluminum Threshold Assembly Part
- Mill finish

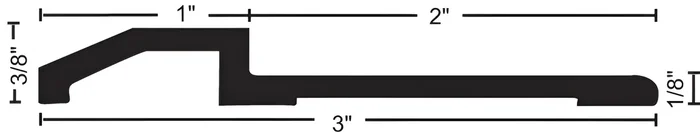

- 3″ wide x 3/8″ tall
- Aluminum alloy 6063, T5 temper
- Weight: .44 lbs./ft.
- Threshold assembly component
Attributes
Dimensions: 3″ wide x 3/8″ tall
Finish: Mill finish
Length: 84.0″
Material: Aluminum alloy 6063, T5 temper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Weight: Weight: .44 lbs./ft.
