CRL 8762S 90 No Hold Open Adjustable Concealed Door Closer S-Package
C.R. Laurence 8762S 90 No Hold Open Adjustable Spring Power Overhead Concealed Door Closer S-Package offers a perfect solution for doors ranging from 36″ to 42″, ensuring compliance with A.D.A. opening force requirements. Designed for versatility, this door closer features an adjustable dual-purpose bottom pivot set that accommodates both floor and threshold mounting, making it suitable for various installation scenarios. Constructed from durable aluminum, the closer fits standard 1-3/4″ x 4″ (44 x 102 mm) extrusions or larger, providing a robust solution for high-traffic environments. The product includes independent adjustment valves that allow for precise control over closing and latching speeds, enhancing the user experience. With a maximum door weight capacity of 200 lbs, it’s ideal for aluminum and hollow metal doors. This model is UL Listed and comes with a 5-year limited warranty, ensuring quality and reliability. The adjustable spring power feature allows for fine-tuning of spring tension, accommodating site-specific conditions. Note that an auxiliary floor or overhead door stop is recommended to avoid potential damage due to over-extension. The C.R. Laurence 8762S is an excellent choice for professionals seeking a dependable, aesthetically pleasing door closer that meets rigorous accessibility standards while delivering exceptional performance.
90 No Hold Open Adjustable Spring Power Overhead Concealed Door Closer S-Package
- Suitable for Doors from 36″ to 42″ to Meet A.D.A. Opening Force Requirements
- Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
- For Doors with 1/2″ (13 mm) Top Rail Depth
- 5 Year Limited Warranty
- UL Listed
The
CRL Adjustable Spring Power Overhead Concealed Door Closer is available to meet A.D.A. Opening Force requirements. Available as a body only with mounting clips to retrofit existing non-adjustable door closer installations, and as complete packages that includes the Door Closer, Mounting Clips, Type S-Side Load Arm or Type A-End Load Arm, and a DP-Adjustable Dual-Purpose Bottom Pivot Set or GE-Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90º and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4″ x 4″ (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options are available.

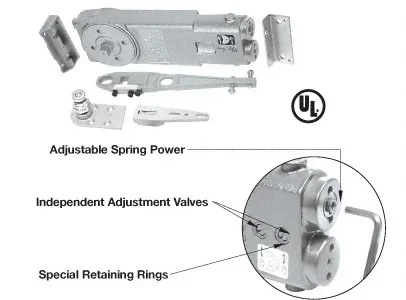

Adjustable Spring Power
Allows adjustment of spring tension from a minimum of 8-1/2 lbs. opening force to a medium spring size to accommodate site conditions and requirements.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Americans with Disabilities Act: Yes
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Bottom Door Rail Depth: 1
Bottom Pivot Type: Dual Purpose Pivot
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Handing: Double Acting
Includes: CRL6762, CRL8010FS, CRL8010S, CRL8010DP
Material: Aluminum
Maximum Door Weight: 200
No Hold Open: 90°
Package Type: Side Load S
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Shipping Limitations: None
Similar: CRL8762GE
Spindle: 1/2
Spring Size: Adjustable
Top Rail Depth: 1/2
Type: Center Hung
UL Listed: Yes
Resources
- OHC Spring Power Adjustment CRL OHC SPRING POWER ADJUSTMENT.pdf
- OHC Template Instructions CRL OHC TEMPLATE INSTRUCTIONS.pdf
