Description

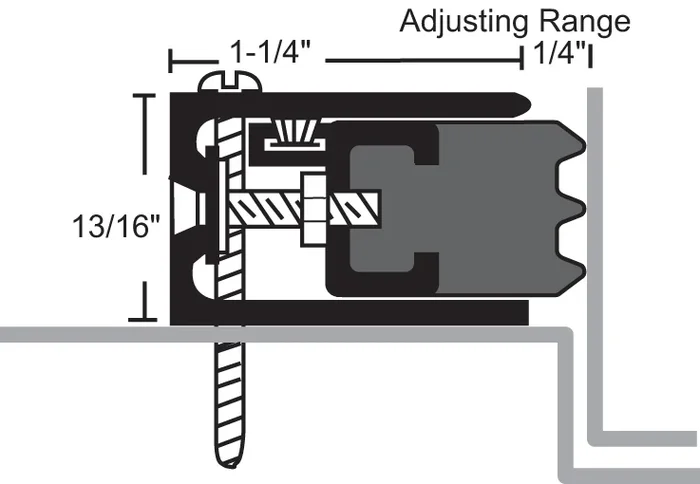

NGP 103NDKB 96″ DKB Aluminum Adjustable Neoprene Perimeter Seal
NGP 103NDKB 96″ DKB-finish Aluminum Adjustable Neoprene Perimeter Seal is an exceptional solution for enhancing the performance and longevity of your commercial restroom partitions. Crafted from high-quality Aluminum Alloy 6063 in T5 Temper, this perimeter seal offers remarkable durability and resistance against abrasion, ozone, and aging, ensuring it withstands the test of time. Featuring synthetic EPDM rubber encased in a polypropylene thermoplastic matrix, the closed-cell advanced elastomeric foam provides excellent moisture and flame resistance. With a temperature range of -81°F to 275°F, it is designed to perform effectively in various environmental conditions. The adjustment screws placed on 10″ centers allow for easy installation and adjustment without the need to reposition the mounting location. Certified by BHMA to ANSI/BHMA A156.22 performance standards, the NGP 103NDKB is not only practical but also complies with rigorous fire safety regulations, making it suitable for use on fire-rated doors. The sleek dark bronze finish adds a refined touch to any restroom design. This perimeter seal is furnished with #6 x 3/4″ or #6 x 1-1/2″ stainless steel SMS fasteners for added reliability. Upgrade your restroom partitions with this reliable and efficient sealing solution.
96″ DKB-finish Aluminum Adjustable Neoprene Perimeter Seal
- Very Good Abrasion Resistance, Tensile Strength and Memory
- Flame-Resistant
- Aluminum Alloy 6063, T5 Temper
- Moisture-Resistant
- Good Resistance to Ozone, Sunlight and Aging
- Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix Closed Cell Advanced Elastomeric Foam
- Color is black
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
- Temperature Range -81°F to 275°F
- #6 x 3/4″ or #6 x 1-1/2″ Stainless Steel SMS Furnished
- Dark Bronze Finish
- Adjustment Screws on 10″ Centers Allow Adjustment Without Re-Positioning Mounting Location
Attributes
Ship via: No UPS – Common Carrier Only
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is black
Fasteners: #6 x 3/4″ or #6 x 1-1/2″ Stainless Steel SMS Furnished
Finish: Dark Bronze Finish
Fire Rated: Flame-Resistant
Length: 96.0″
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -81°F to 275°F
