Description
NGP 106SDKB 96″ DKB Aluminum Adjustable Silicone Perimeter Seal
NGP 106SDKB 96″ DKB-finish Aluminum Adjustable Silicone Perimeter Seal provides an exceptional solution for maximizing the efficiency and safety of your commercial restroom partitions. Crafted from durable aluminum alloy 6063 with T5 temper, this perimeter seal boasts a striking dark bronze finish that enhances aesthetic appeal while ensuring robust performance. Designed for versatility, the synthetic rubber polymer Siloxane offers excellent flexibility and memory, remaining pliable within a temperature range of -100°F to 500°F. This ensures reliable functionality, even in extreme conditions. The seal is not only moisture resistant but also flame resistant, making it ideal for environments utilizing FM200 or Halon Fire Suppression Systems. NGP’s perimeter seal is BHMA Certified to ANSI/BHMA A156.22 performance tests, confirming its resilience against heat and cold. Easy to install, the adjustment screws on 10″ centers allow for straightforward adjustments without needing to reposition mounting locations. Fasteners, including #6 x 3/4″ or #6 x 1-1/2″ stainless steel SMS, are included for added convenience. With excellent resistance to ozone, UV, and aging, the NGP 106SDKB ensures long-lasting performance and reliability. This product is a perfect choice for building professionals seeking quality and durability in their restroom partition hardware solutions.
96″ DKB-finish Aluminum Adjustable Silicone Perimeter Seal
- Excellent flexibility and memory
- Flame resistant
- Synthetic rubber polymer: Siloxane
- BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold

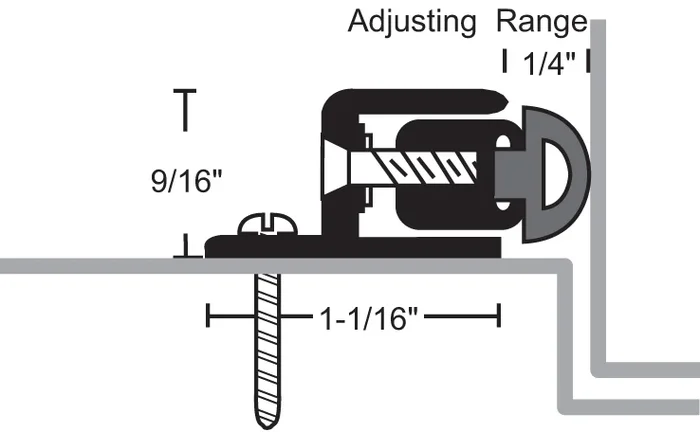

- Adjustment screws on 10″ centers allow adjustment without re-positioning mounting location
- Dark bronze finish
- Temperature range -100°F to 500°F, remains flexible at extreme temperatures
- #6 x 3/4″ or #6 x 1-1/2″ stainless steel SMS furnished
- Excellent resistance to ozone, UV and aging
- Moisture resistant
- Recommended for areas using FM200 or Halon Fire Suppression Systems
- Silicone is black
- Aluminum alloy 6063, T5 temper
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold and Energy Performance
Attributes
Ship via: No UPS – Common Carrier Only
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
Color: Silicone is black
Fasteners: #6 x 3/4″ or #6 x 1-1/2″ stainless steel SMS furnished
Finish: Dark bronze finish
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 96.0″
Material: Synthetic rubber polymer: Siloxane
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
