Description
NGP 323 DKB 96 323 DKB 96 National Guard Products Threshold
SADDLE THRESHOLD DARK BRONZE
- #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds

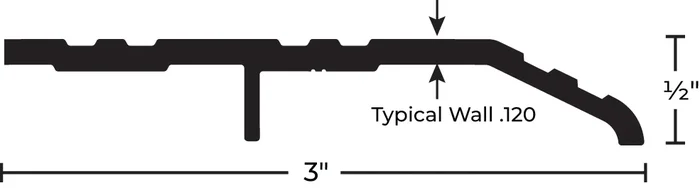

- 3″ wide x 1/2″ tall
- Fluted top
- Weight: .56 lbs./ft.
- ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4″ vertical rise occurs
- Typical wall thickness .109″
- Aluminum alloy 6063, T5 temper
- Dark bronze finish
Attributes
Ship via: No UPS – Common Carrier Only
Restriction message: Due to the large package size of this item, shipping charges will be as follows: 1 to 3 Units: $130.00 4 to 6 Units: $260.00 7 to 9 Units: $390.00
ADA: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4″ vertical rise occurs
Dimensions: 3″ wide x 1/2″ tall
Fasteners: #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Finish : Dark Bronze
Fire Rated: 3 Hours
Length: 96.0″
Material: Aluminum alloy 6063, T5 temper
Restrictions: Largewide
Series: NGP Thresholds
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Threshold
Type: Hinges and Pivots
Wall Thickness: Typical wall thickness .109″
Weight: Weight: .56 lbs./ft.
