Description

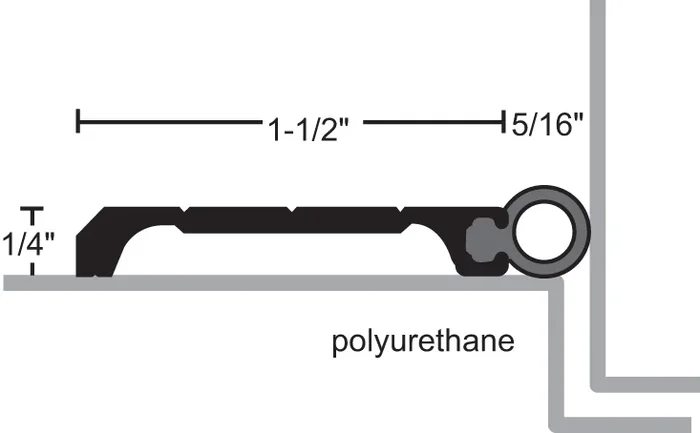

NGP 700EUDKB 96″ DKB Aluminum Polyurethane Perimeter Seal
NGP 700EUDKB 96″ DKB-finish Aluminum Polyurethane Perimeter Seal is designed to provide exceptional durability and performance in commercial restroom applications. Constructed from aluminum alloy 6063 with a T5 temper, this perimeter seal boasts impressive abrasion resistance, tensile strength, and UV stability, ensuring longevity even in challenging environments.The polyurethane material, finished in an attractive dark bronze, is both flame resistant and moisture resistant, making it ideal for areas exposed to fluctuating temperatures ranging from -80°F to 200°F. Its innovative design allows for no break in the seal for closer mounting, facilitating the installation of rim exit device strikes without the need for notching the gasketing. The head section remains undrilled, while the jamb sections come with slotted holes for easy adjustment. Self-drilling #8 Tek screws are included, streamlining the installation process. Additionally, the product is certified by UL for fire safety, complying with various standards for hollow metal and wood fire doors.This perimeter seal not only enhances the functionality of restroom partitions but also contributes to maintaining a safe and secure environment. With its blend of strength and resistance, the NGP 700EUDKB is the perfect choice for building professionals seeking reliable restroom hardware solutions.
96″ DKB-finish Aluminum Polyurethane Perimeter Seal
- Allows mounting of rim exit device strikes without notching gasketing
- Self drilling #8 (Tek type) screws furnished
- Flame resistant
- Jamb sections furnished with slotted holes for adjustment
- Polyurethane is black
- No break in seal for closer mounting
- Dark bronze finish
- Temperature range -80°F to 200°F
- Head section not drilled
- Moisture resistant
- Closer and/or overhead holder attach to frame through weatherseal section. Install seal first
- Aluminum alloy 6063, T5 temper
- Very good abrasion resistance, tensile strength, memory and UV resistance
Attributes
Ship via: No UPS – Common Carrier Only
Color: Polyurethane is black
Fasteners: Self drilling #8 (Tek type) screws furnished
Finish: Dark bronze finish
Fire Rated: Flame resistant
Length: 96.0″
Material: Aluminum alloy 6063, T5 temper
Moisture Resistant: YES
Resistance: Very good abrasion resistance, tensile strength, memory and UV resistance
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Temperature Range: Temperature range -80°F to 200°F
