Description
NGP 5020C 96″ Self-Adhesive TPE Batwing Smoke Seal
NGP 5020C 96″ Self-Adhesive TPE Batwing Smoke Seal is designed to enhance the performance and durability of commercial restroom partitions. Made from self-adhesive Thermo-Plastic Elastomer (TPE), this smoke seal features a rigid base with flexible elastomeric fins, ensuring excellent abrasion and moisture resistance. It has undergone rigorous BHMA certification to meet ANSI/BHMA A156.22 standards for heat, cold, air infiltration, and energy efficiency. This flame-resistant seal operates effectively within a temperature range of -60°F to 275°F, making it suitable for various environments. Treated with an anti-microbial additive, it inhibits the growth of microorganisms, promoting a healthier restroom atmosphere. The modified acrylic pressure-sensitive adhesive guarantees high initial adhesion and long-term holding power, ideal for both interior and exterior applications. The NGP 5020C is available in a charcoal color and measures 1/2″ wide by 1/2″ tall, with lengths ranging from 3′ to 9′. Its resistance to aging, weathering, UV radiation, and chemicals ensures longevity and reliability. For optimal performance, the adhesive has a shelf life of one year when stored under the right conditions. This product meets various fire safety standards, making it a trusted choice for building professionals and discerning homeowners alike.

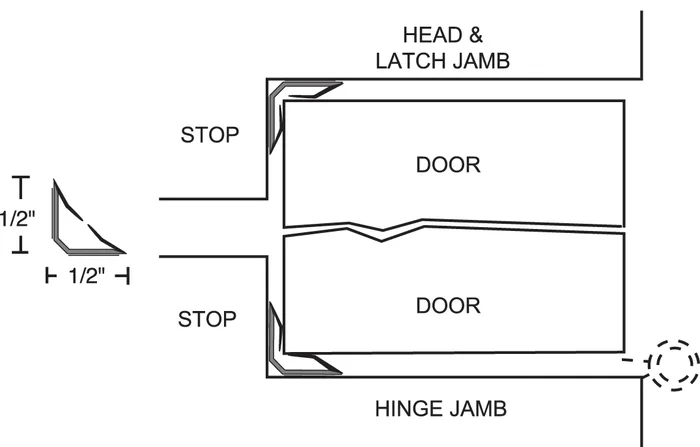

96″ Self-Adhesive TPE Batwing Smoke Seal
- 1/2″ wide x 1/2″ tall
- Good abrasion resistance
- Flame resistant
- REACH and RoHS compliant
- BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and energy performance
- Modified acrylic pressure sensitive adhesive protected by release liner
- Anti-microbial: treated with an anti-microbial additive to inhibit the growth of microorganisms
- Temperature range -60°F to 275°F
- Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
- Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
- Available in 3′, 4′, 7′, 8′ and 9′ Lengths
- Self-Adhesive Thermo-Plastic Elastomer (TPE)
- Moisture resistant
- Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
- End use temperature range of adhesive, long term exposure -30°F up to 250°F
- Rigid base with flexible elastomeric fins
- Charcoal
- Resistant to Aging, Weathering, UV Radiation, Water, Detergent, Alcohol and the Influence of Chemicals
- Shelf Life of Adhesive Prior to Installation is One Year when Stored at 75°F and 50% Relative Humidity or Less
- Flame-Resistant
- Moisture-Resistant
- End Use Temperature Range of Adhesive, Long Term Exposure -30°F Up To 250°F
- Self-Adhesive Silicone Rubber
- Good Abrasion Resistance
- Modified Acrylic Pressure Sensitive Adhesive Protected by Release Liner
- Provides High Initial Adhesion and Long Term Holding Power for Permanent Mounting in Exterior or Interior Locations
- Reach and RoHS Compliant
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold, Adhesive and Energy Performance
Attributes
Ship via: No UPS – Common Carrier Only
BHMA: BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and energy performance
Color: Charcoal
Dimensions: 1/2″ wide x 1/2″ tall
Fire Rated: Flame resistant
Length: 96.0″
Moisture Resistant: YES
Resistance: Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
Ro HS: REACH and RoHS compliant
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANTI-MICROBIAL. Treated with an anti-microbial additive to prohibit the growth of microorganisms.
Standard-6: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: End use temperature range of adhesive, long term exposure -30°F up to 250°F
