Description
| Specifications | |
|---|---|
| – | – |
| Verpackungseinheit | 2.000 |
| Zylinderüberstand | 15.000 MMT |
| Entfernungsmaß | 92.000 MMT |
| Artikelgruppe | 10.000 |
| Verpackungsart | blister packaging |
| Security Level HaSi | 5.000 |

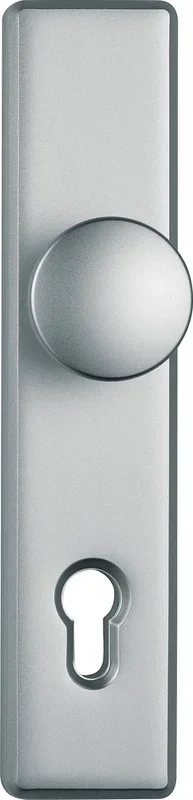

| Ausführung | Handle plate / door handle |
| Weight | 988.000 GRM |
| Färbung | F9: Aluminum stainless steel look |
| Ziehschutz | No |
| Einsatz und Anwendung 01 | For main entrance doors |
| Einsatz und Anwendung 02 | Grip plate outside, handle inside |
| Einsatz und Anwendung 03 | Suitable for door thicknesses of 52 – 67 mm |
| Einsatz und Anwendung 04 | Mounting material for deviating door thicknesses can be supplied |
| Technologie 01 | According to DIN EN 1906 SK 1 and DIN 18 257 ES 0 |
| Technologie 02 | Increased leverage resistance: solid cams plus inner screws |
| Technologie 03 | Proven layered construction: hardened steel bottom plate, plus sturdy cover plate |
| Technologie 04 | Thickness: 15 mm |
| Technologie 05 | Spacing: 92 mm, square bolt: 10 mm |
| Varianten 01 | Finishes: F1 (alu anodized), F2 (silver anodized), F3 (anodized brass), F4 (anodized bronze), F9 (stainless steel look), white |
| Varianten 02 | Alternatively available as a handle/handle set |
| Varianten 03 | Also available with cylinder protection (ZS) |
| ABUS | |
| Door fitting | |
| ABUS | |
| false | |
| Item No. | 31696 |
| All items are original Abus products. |
