Aiphone LEM-1DLS Aiphone Corporation
Notice: The info below is not item specific.

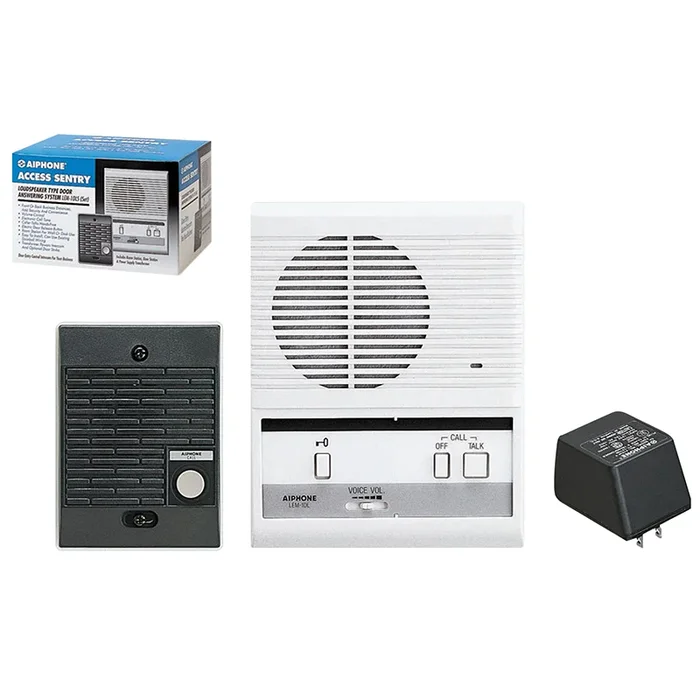

The LEM-1DL Series is an audio only communication and entry security system. The system can start as a one door, one master kit using the LEM-1DLS box set, and can be expanded to up to 4 inside master stations. Each master allows for communication with the outside door and door release control
Features:
- Door release (N/O contact)
- Calling and 2-way communication
- Call tone & voice volume control
- AC 12 ∼ 16V or DC 12 ∼ 24V powered
- Any LE or LS series door station is compatible
Specifications:
- Power Source:
- 12∼16V AC – Use PT-1210N 12∼24V DC, 200mA
- Communication:
- When called by tone, press TALK to reply, press door release button to release door and press OFF for standby Door Release
- Contact Rating:
- 30V AC or DC, 1A
- Wiring:
- Door/Sub to master: 2-cond., overall shield
- Distance:
- Door/Sub to farthest master: 650′(22AWG) 1,600′(18AWG)
- Wire Type:
- Aiphone #822202 or Aiphone# 821802
- Door release (N/O contact)
- Calling and 2-way communication
- Call tone & voice volume control
- AC 12 ∼ 16V or DC 12 ∼ 24V powered
- Any LE or LS series door station is compatible
Features
- Door release (N/O contact)
- Calling and 2-way communication
- Call tone & voice volume control
- AC 12 ∼ 16V or DC 12 ∼ 24V powered
- Any LE or LS series door station is compatible
Attributes
Alternate Codes: 140873, LEM-1DLS, LEM1DLS
Category: Access Control, Alarms & Intercom, Intercom Entry Systems, Intercom/Sound
Commercial Residential: Commercial
Communication: 2-Way, Calling
Door Panel Mount: Surface
Entry Type: Intercom Entry
Installation: Commercial
Intercom Type: Entry System, Voice Communication
Mounting: Surface
Operating Volt: 12 VDC
Operating Voltage: 12 VDC
Pack Qty: 1
Power Source: 12/24V DC
Series: LEM Audio Hands-Free Intercom System
Station Mount: Surface Wall
Subtype: Intercom
Type: ACCESS CONTROL
Unit of Measure: Each
Wire Distance: 650′
Wire Required: 822202 or 821802
