Description

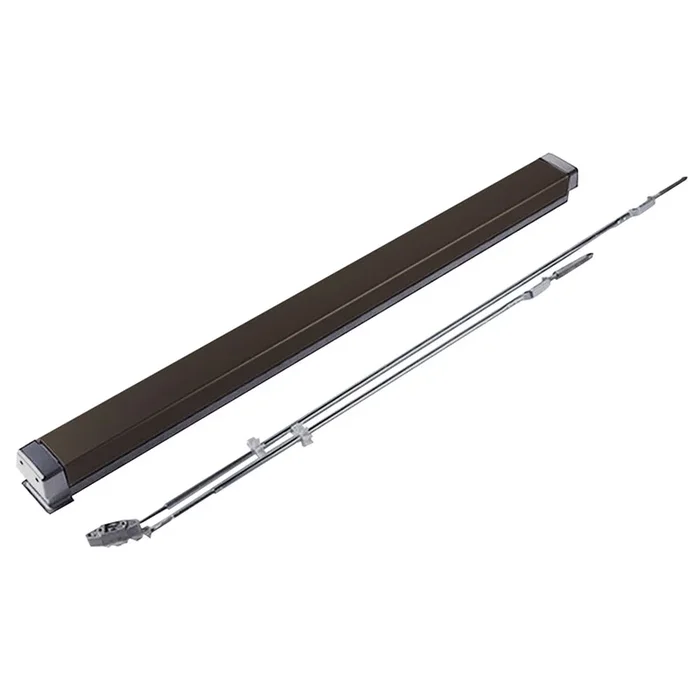

Adams Rite 8622C-36 Concealed Vertical Rod Device
Adams Rite 8622C-36 Concealed Vertical Rod Device offers a sleek, unobtrusive design ideal for aluminum applications. This narrow stile exit device features cylinder dogging, ensuring both security and ease of use. It is designed for 36-inch openings and comes in a stylish dark bronze anodized aluminum finish, blending seamlessly with modern architecture. One of the standout features of this device is the patented “Starwheel” bolt that interlocks the door to the frame, providing enhanced security. As the door closes, the interlocking noseguard and bolt work together, ensuring a secure lock. The deadlocking slide mechanism facilitates easy unlocking with a simple push of the bar, making it user-friendly. Installation is straightforward thanks to the non-handed design and field-reversible lever entry trim. The device accommodates standard door heights of up to 8 feet and door thicknesses from 1-3/4 inches to 2-1/4 inches. Additionally, the pushbar length can be adjusted for varying door sizes. With a five-year limited warranty, the Adams Rite 8622C-36 is an excellent choice for professionals seeking reliability and functionality in exit devices. Enhance security and accessibility in commercial settings with this durable solution.
Concealed Vertical Rod Device
Narrow Stile Concealed Vertical Rod Exit Device, Cylinder Dogging, For Aluminum Applications, 36 In., Dark Bronze Anodized Aluminum
Clean, unobtrusive design. Easy to install.
Patented “Starwheel” bolt interlocks door to frame, which is a unique feature for exit devices. The “Starwheel” bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.
- Materials:Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
- Handing:Device is non-handed. Lever Entry Trim is field reversible.
- PushbarLength: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
- Bar Height:Standard model adjusts from 30” to 44”.
- Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
- Door Thickness:Suits 1-3/4” standard, up to 2-1/4”.
- Stile Width:3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
- Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
- Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
- Fasteners:Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
- Cylinders(available separately): SeeCYLINDERSfor cylinder make, thumbturn and trim ring information.
- Cylinder x Fixed Pull:(ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
- 3080 Entry Trim(ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
- Warranty:Five year limited.
Attributes
Commercial Residential: Commercial
Cylinder Type: 1″ Mortise with MS Cam
Device Length: 36″
Device Type: Concealed Vertical Rod
Dogging Options: Cylinder Dogging
Door Height: 8′
Door Thickness: 1-3/4″ – 2-1/4″
Finish: 313
Finish Family: Dark Bronze
Fire Rated: No
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Mechanical Function: Universal
Minimum Stile Size: 2″
Pack Qty: 1
Pbs Options: 10,399,156,157,406,900
Physical Appearance: Narrow Stile Pushpad
Series: 8000 Series Exit Devices
Subtype: Concealed Vertical Rod Exit Devices
Type: Exit Devices
Unit of Measure: Each
