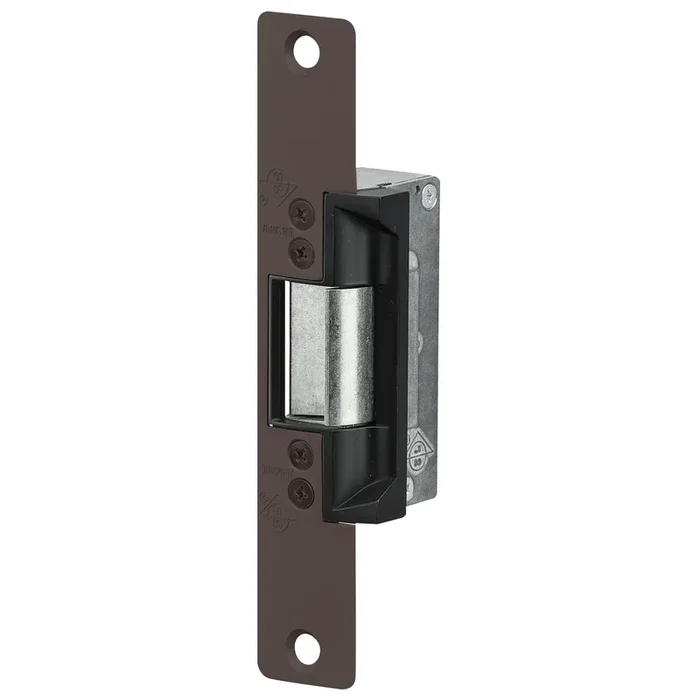

Adams Rite 7131-540-313-00 12VDC/24VAC Electric Strike
Adams Rite 7131-540-313-00 Electric Strike 12VDC/24VAC offers reliable access control in a sleek, durable design. This Grade 1 Electric Strike is engineered for fail secure operation, making it ideal for commercial applications requiring a robust security solution. With a 6-7/8″ x 1-1/4″ radius faceplate featuring round corners, it fits seamlessly into aluminum, hollow metal, or wood doors. Designed for use with Adams Rite 4500, 4700 (discontinued), or 4900 deadlatches and cylindrical locksets with latchbolt projections of 1/2″ to 5/8″, this electric strike enables remote electrical control. It allows for the unlocking of the keeper, releasing the latchbolt without needing to operate the latch itself, ensuring ease of access. The unit can be field-converted between fail-safe and fail-secure modes, offering flexibility based on your security needs. With a holding force of up to 1500 lbs static and 70 ft lbs dynamic, the Adams Rite 7131-540-313-00 is built to provide dependable performance. It is UL 1034 and UL 294 listed, ensuring it meets high safety standards. This model is available in a dark bronze anodized finish, enhancing both functionality and aesthetic appeal.
Electric Strike 12VDC/24VAC
Grade 1 Electric Strike, Fail Secure, 24VAC, for Aluminum Applications, 6-7/8″ x 1-1/4″ Radius Faceplate with Round Corners, Dark Bronze Anodized Finish
Remote Electrical Control of Any Door Equipped with an Adams Rite 4500, 4700 (Discontinued), or 4900 Deadlatch or Cylindrical Lockset with 1/2″ [12.7 mm] To 5/8″[15.9 mm] Latchbolt Projection. Electrical Actuation Unlocks the Keeper, Releasing the Latchbolt so the Door May Be Opened Without Operating the Latch Itself.
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2″ to 5/8″ latchbolt projection.
For use in aluminum, hollow metal, or wood applications — remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2″ [12.7 mm] to 5/8″ [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.
- Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.
- Case: Approximately 1” x 3-3/8” x 1-5/8” deep.
- Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.
- Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
- Faceplate: Measures 1-1/4” x 4-7/8”. 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.
- Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.
Attributes
Amp Draw: .74 Amps
Ansi: ANSI/BHMA A156.23
Application: Aluminum Applications
Commercial Residential: Commercial
Faceplate Shape: Radius Face, Round Corners
Faceplate Size: 6-7/8″ x 1-1/4″
Finish: 313
Finish Family: Dark Bronze
Function: Fail Secure
Grade: Grade 1
Holding Force: 1500 lbs Static, 70 ft lbs Dynamic
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 24VAC
Pack Qty: 1
Pbs Options: 103,963,941,039,640,000,000,000
Series: 7100 Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 1034 and UL 294 Listed
Unit of Measure: Each
