Adams Rite 3080-01-0-31-US32D Entry Trim Instructions
Adams Rite 3080-01-0-31-US32D Entry Trim is designed for seamless integration with any Adams Rite exit device, providing reliable outside activation for your commercial doors. Crafted from satin stainless steel, this trim not only boasts a sleek matte silver finish but also ensures durability and strength, meeting Grade 1 standards for solid construction. The 3080 series features a unique breakaway clutching mechanism that protects the locked handle from vandalism and forced entry from either direction, enhancing security. With a lever design that returns within ½” of the door face, this trim ensures compliance with local code requirements while offering a user-friendly experience. This model can be ordered with or without a cylinder hole, allowing for flexibility in installation. For added convenience, standard mortise cylinders with MS cam are available separately, along with optional power supply components like the 4603 Rectifier or 4605/4606 Transformer. The non-handed design simplifies installation, making it suitable for a variety of applications. Whether you’re upgrading existing hardware or outfitting new construction, the Adams Rite 3080-01-0-31-US32D Entry Trim is an excellent choice for enhancing both functionality and security.
Entry Trim

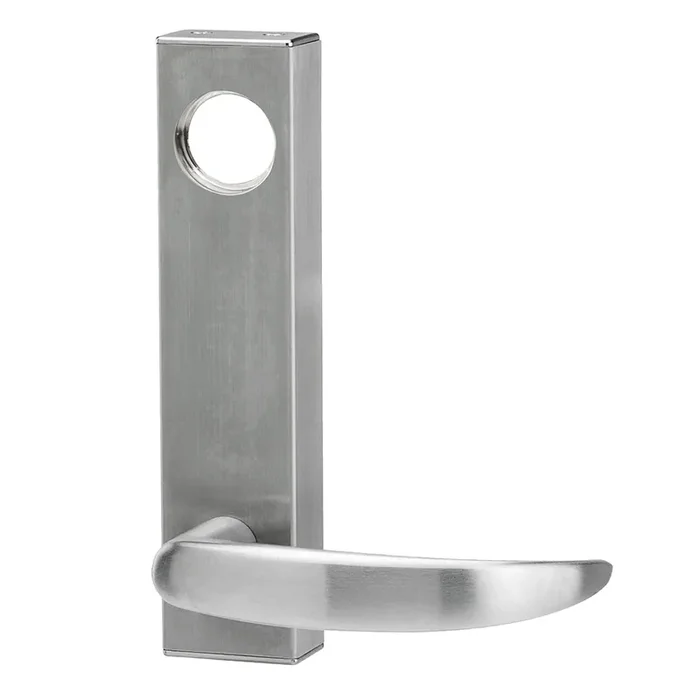

Entry Trim, 01 Curve Lever, With Cylinder Hole, SVR Exit Devices, Satin Stainless Steel
The 3080 Series Entry Trim provides outside activation for doors with any type of Adams Rite exit device and deadlatch. The locked handle is protected from vandalism and forced entry with a breakaway clutching mechanism.
Provides outside activation of doors that have any type of Adams Rite Exit Device.
Breakaway clutching mechanism protects the locked handle from vandalism or forced entry, in either direction. All models share the same core components, so handles can be changed without having to replace the entire trim. Solid construction meets Grade 1 standards.
- Standard Handles: The 3080-01, -02, and -03 lever handles are designed to return within ½” of the door face. Handles in the Designer Series do not have this same feature. Please verify with local code requirements to ensure compliance.
- Options: Can be ordered with or without a hole for cylinder. Order standard mortise cylinder with MS® cam separately. Order 4603 Rectifier, 4605/4606 Transformer or PS-1 Power Supply separately.
Attributes
Commercial Residential: Commercial
Cylinder Type: 1″ Mortise with MS Cam
Device Type: Trim
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Handing: Non-Handed
Includes Cylinders: No
Installation: Commercial
Pack Qty: 1
Pbs Options: 10399342,10399350,157407293
Series: 3080 Entry Trim
Subtype: Exit Device Trim
Trim Design: 01 Lever
Trim Type: Entry Lever
Type: Exit Devices
Unit of Measure: Each
Resources
- 3080 Entry Trim Cut Sheet
- 3081/82/83 Trim Installation Instructions
- Mechanical to Electrical – Making the Jump
