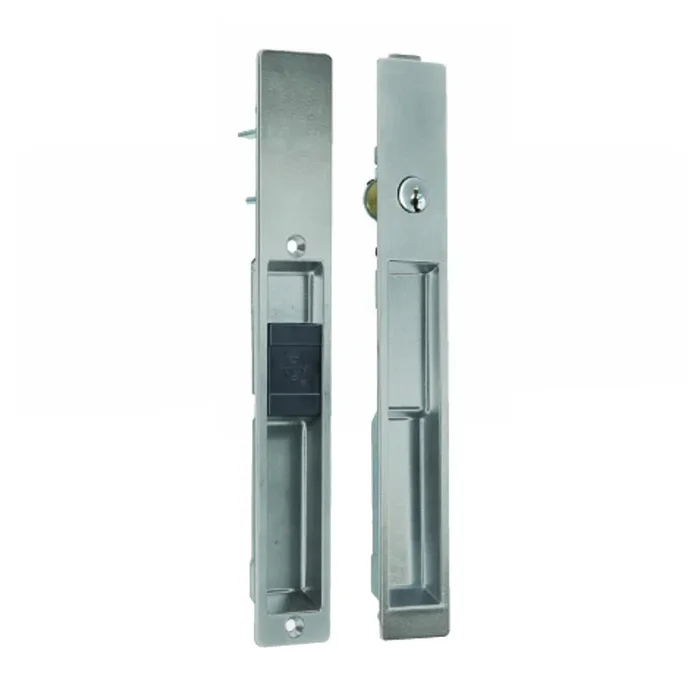

Adams Rite 4190-10-01-130-01-IB Flush Cylinder Lockset
Adams Rite 4190-10-01-130-01-IB Flush Lockset With Cylinder offers a sleek and effective security solution for sliding doors. Designed specifically for stile thicknesses ranging from 1″ to 1-3/8″, this lockset features a square lock face and a flush-mounted cylinder that projects only 1/10″ from the door stile. This minimal projection allows doors to slide seamlessly past other units or stationary panels, eliminating potential obstructions like projecting handles that could snag draperies or impede stacking in wall pockets. The 4190 lockset utilizes the reliable Adams Rite MS1847 mechanism, known for its time-tested durability. Its operation is straightforward, requiring only a simple up or down movement of the slide button, which is conveniently set flush within a deeply recessed finger pull. While it is not recommended for wood doors, this lockset excels in commercial environments, providing robust security without sacrificing design aesthetics. Additionally, a matching “dummy set” (model 4195) is available for a complete locking solution. With a finish of 130 and packaged as a single unit, the Adams Rite 4190 is an excellent choice for professionals seeking reliable and efficient door hardware.
Flush Lockset With Cylinder
Flush Lockset with Cylinder, Square Lock Face, 1″ to 1-3/8″ Stile Thickness, Aluminum
The 4189 and 4190 Flush Locksets for sliding doors combine the time-tested and field-proven Adams Rite MS1847 with a slide button. Projecting only 1/10″ from the door stile on either side, 4189 and 4190 locksets allow doors to slide freely past other sliding units or stationary panels. There are no projecting handles to tear draperies or prevent the door from being “stacked” in a wall packet. 4190 has a flush mounted cylinder outside. Not recommended for wood doors. Both locksets operated from inside by a simple up or down movement of a slide button, set flush in the deeply recessed finger pull. The lock mechanism (latching action unavailable) is the time-tested and field-proven Adams Rite MS1847 and features the adjustable, self-protecting bolt. Matching “dummy set” is also available (4195).
Adams Rite makes a great selection of deadlocks and flush locksets.
Attributes
Commercial Residential: Commercial
Finish: 130
Installation: Commercial
Pack Qty: 1
Pbs Options: 10391043,10401734,10401738
Series: Flush Locksets and Deadlocks
Subtype: Flush Locksets
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 1875 Two Point Deadlock Installation Instructions
- 4189, 4190 Flush Locksets Installation Instructions
- 4430, 4431 Flush Locksets Installation Instructions
- Flush Locksets and Deadlocks Cut Sheet
