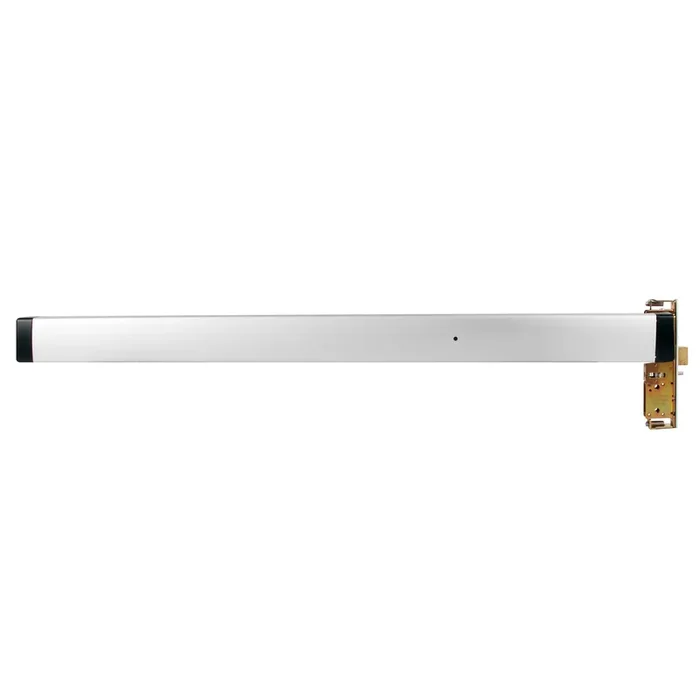

Adams Rite 8410-37142 Mortise Exit Device Instructions
Adams Rite 8410-37142 Mortise Exit Device is designed for life safety in narrow stile aluminum applications, offering a sleek, unobtrusive aesthetic that enhances any entryway. With a 42-inch length and a right-hand reverse (RHR) configuration, this exit device is perfect for commercial settings where durability and security are paramount. The patented “Starwheel” bolt mechanism sets this device apart, providing a unique interlocking feature that secures the door to the frame when closed. As the pushbar is depressed, the deadlocking slide retracts, allowing for smooth door operation while ensuring reliable locking. Constructed from extruded aluminum, the pushbar is available in various finishes, ensuring compatibility with your design preferences. This non-handed device accommodates standard door thicknesses of 1-3/4 inches, fitting doors up to 8 feet high with adjustable bar heights from 30 to 44 inches. Installation is straightforward, thanks to the standard self-tapping screws and optional sex bolt kits. The Adams Rite 8410-37142 also accepts standard rim cylinders and mortise cylinders, providing flexibility for access control systems. Backed by a five-year limited warranty, the Adams Rite 8410-37142 Mortise Exit Device is an excellent choice for building professionals seeking safety, reliability, and style in their door hardware solutions.
Mortise Exit Device
Life Safety Narrow Stile Mortise Exit Device, For Aluminum Applications, 42 In., RHR, Satin Aluminum Clear Anodized
Mortise Exit Device, 1-1/8″ BacksetNarrow Stile Aluminum Doors, RHR, 42″, Aluminum
Clean, unobtrusive design. Easy to install.
Patented “Starwheel” bolt interlocks door to frame, which is a unique feature for exit devices. The “Starwheel” bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.
- Materials:Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
- Handing:Device is non-handed. Lever Entry Trim is field reversible.
- PushbarLength: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
- Bar Height:Standard model adjusts from 30” to 44”.
- Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
- Door Thickness:Suits 1-3/4” standard, up to 2-1/4”.
- Stile Width:3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
- Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
- Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
- Fasteners:Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
- Cylinders(available separately): SeeCYLINDERSfor cylinder make, thumbturn and trim ring information.
- Cylinder x Fixed Pull:(ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
- 3080 Entry Trim(ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
- Warranty:Five year limited.
Attributes
Commercial Residential: Commercial
Device Length: 42″
Device Type: Mortise
Door Thickness: 1-3/4 In.
Finish: 628/US28
Fire Rated: No
Handing: RHR
Includes Trim: No
Installation: Commercial
Mechanical Function: Universal
Minimum Stile Size: 2 In.
Pack Qty: 1
Pbs Options: 1.0372E+16
Physical Appearance: Narrow Stile Pushpad
Reversible: Yes
Series: 8000 Series Exit Devices
Subtype: Mortise Exit Devices
Type: Exit Devices
Unit of Measure: Each
Upc: 8.88512E+11
