Description

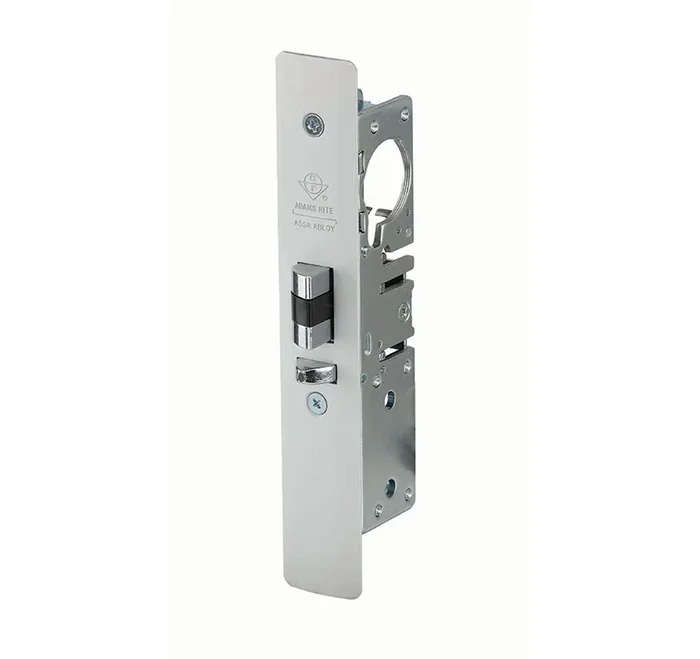

Adams Rite 4531-15-101-313 Retrofit DeadLatch, 7/8″ Backset
Adams Rite 4531-15-101-313 Retrofit DeadLatch 7/8 Backset offers a reliable and flexible locking solution ideal for various commercial applications. This standard-duty deadlatch features a radius faceplate and a 7/8-inch backset, making it compatible for retrofitting into existing installations of older MS1850 deadlocks and discontinued 4250 deadlatches without requiring alterations.Designed for efficient traffic control, a reverse turn of the key while the bolt is retracted retains the bolt, allowing two-way traffic flow when necessary, which is particularly useful in settings such as hospitals, banks, and retail stores. The durable latchbolt boasts a 1/2-inch throw and hardened steel internal pins, providing robust security.The case dimensions of the deadlatch are 1 inch by 5-13/16 inches, constructed from steel with corrosion-resistant plating, ensuring longevity even in demanding environments. The package comes complete with a standard flat mortised strike (4901-01) and machine screws for hassle-free installation.With a field-reversible handing and compatibility with any standard mortise cylinder with MS cam, the Adams Rite 4531-15-101-313 Retrofit DeadLatch is a dependable choice for maintaining security while accommodating changing access needs.
Retrofit DeadLatch 7/8 Backset
Standard Duty Retrofit Deadlatch, Radius Faceplate, 7/8 In. Backset, 4-5/8 In. Flat Mortised Strike, LH or RHR, Dark Bronze Anodized
The 4530 Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. 4530 Deadlatches are designed to fit without alteration, the stile cutout for older MS1850 Deadlocks and discontinued 4250 Deadlatches of same backset. Turn key or operate handle to retract spring-loaded Latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Uses any standard mortise cylinder with MS cam. Standard strike furnished is 4901-01 for flat jamb. Available in three cylinder backsets, 7/8 In., 31/32 In. and 1-1/8 In.. Individually boxed with strike and machine screws for mounting. Cylinders, paddles, and handles available separately.
Designed to retrofit into the prep of older MS1850 Deadlocks and 4250 Deadlatches.
The 4530 Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times.
- Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
- Cylinder Backset: 7/8”, 31/32”, or 1-1/8” only
- Case: Measures 1” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
- Latchbolt: 1/2” x 1” x 1/2” throw. All metal with hardened steel internal pins. Handing is reversible without special tools.
- Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry.
- FaceplateF: Measures 1-1/4” x 7-13/32”.
- Strikes: Standard strike furnished is 4901-01 for flat jamb. For dimensions of this as well as radiused and/or short strikes seeACCESSORIES.
- Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
- Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering. For information on handles and paddles seeTRIM.
- Standard Package: Individually boxed with strike and machine screws for mounting. Cylinders, paddles, and handles available separately. Shipping weight: 1-1/4 lbs.
Attributes
Baa Qualified: Yes
Base Material: Aluminum
Bolt Projection: 1/2″
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Less Cylinder
Door Thickness: 1-3/4″ – 2″
Dust Box: Plastic
Finish: 313
Function: Narrow Stile Latch Lock
Handing: Field Reversible
Installation: Commercial
Limited Warranty: 5 Years
Lock Face Size: 7-13/32″ x 1-1/4″
Origin: USA
Pack Height: 2.13″
Pack Length: 8.88″
Pack Qty: 1
Pack Volume: 61.29 in³
Pack Width: 3.25″
Pbs Options: 10371975,10390932,10393728
Product Height: 1.52″
Product Length: 7.41″
Product Width: 1.25″
Screws: Machine
Series: 4530 Standard Duty Deadlatch
Ship Weight: 1.25 lbs.
Std Latch Backset Dim: 7/8″
Std Latch Type: Guarded Latch
Std Strike Height: 4-5/8″
Std Strike Number: 4901-01
Std Strike Type: Mortise
Std Strike Width: 1-9/16″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 4510/4530 Series Deadlatch Installation Instructions
- 4510/4530 Series Re-handing Instructions
- 4530 Catalog Page
- 4530 Standard Duty Deadlatch Cut Sheet
