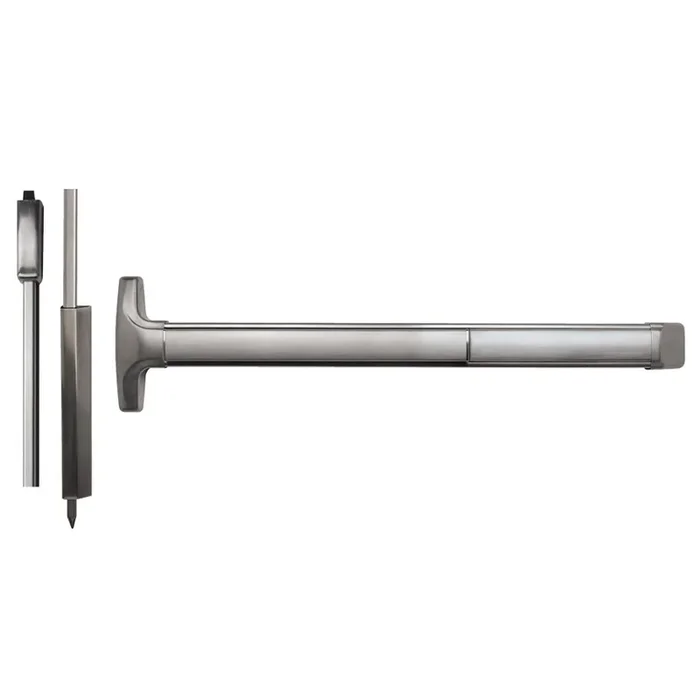

Detex F50-LD-630-36 Advantex Fire Rated Narrow Stile SVR Exit Device, 36in, Satin Stainless Steel
Detex Corporation F50-LD-630-36 Advantex Fire Rated Narrow Stile Surface Vertical Rod Exit Only Device is engineered for exceptional performance on narrow stile double doors without a mullion. This super-heavy-duty panic hardware is ideal for environments that demand reliability, featuring a robust stainless steel design that guarantees years of trouble-free service, even under high-use and challenging conditions. With a 3-hour fire rating, the F50-LD-630-36 ensures safety without compromising accessibility, as it is ADA compliant and includes a ramped bottom bolt cover. The patented mounting plate and strike locator system simplifies installation, minimizing door preparation and saving valuable time. Its durable construction includes a stainless steel deadlocking top latch and a hardened steel bottom drop bolt with a dust-proof strike. Additionally, the device is field reversible and can be easily sized to fit various door widths, making it a versatile choice for different applications. The heavy-duty angled end cap deflects damage, enhancing the device’s longevity. Beyond its practical features, the satin stainless steel finish adds an aesthetic appeal that complements any setting.Choose the Detex F50-LD-630-36 for a reliable, secure, and stylish exit solution that meets stringent safety standards while offering ease of installation.
Advantex Fire Rated Narrow Stile Surface Vertical Rod (SVR) Exit Only Device, No Trim, Less Dogging, 36in, 630/US32D Satin Stainless Steel
Notice: The info below is not item specific.
The F50 Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile double doors without a mullion. All 50 series SVR exit devices are supplied with top and bottom rod covers and an ADA compliant ramped bottom bolt cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
Benefits:
- Tough and durable design for years of trouble-free service in high-use, high-abuse inclement weather environments
- Outside trims are easily changed or rekeyed without removing device from door
- Minimal door prep saves time and money
- Heavy duty angled end cap deflects damage away from device
- Fast and easy installation saves time and money
- Security enhanced by stainless steel rod covers, standard
- Patented mounting plate and strike locator replaces paper templates
Features:
- Stainless steel deadlocking top latch
- Hardened steel bottom drop bolt with dust proof strike
- ADA ramped bottom bolt cover
- 1/8 turn hex or cylinder dogging
- Handed – field reversible
- Field sizeable
- All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process
Mechanical Options:
- F – 3-Hour Fire Rated
- AM – Anti-Microbial Coating
- HD – Hex Dogging (Std.)
- CD – Cylinder Dogging
- LD – Less Dogging
- 24 – Fits 24″ Door Width
- 30 – Fits 30″ Door Width
- 36 – Fits 36″ Door Width (Std.)
- 48 – Fits 48″ Door Width
- EC1 – Heavy duty angled end cap (Std.)
- EC2 – Flush end cap
- 84 – 84″ Door Height (Std.)
- 96 – 85″ to 96″ Door Height
- 120 – 97″ to 120″ Door Height
Electrical Options:
- Exit Alarm (EA)
- Electric Dogging (ED)
- Electric Latch Retraction (ER)
- Delayed Egress – Self Contained (EE)
- Delayed Egress with Latch Retraction (EE ER)
- Electric Unlock (EU2W)
- Request to Exit (EX)
- Request to Exit for High Voltage (EXV)
Accessories:
- GB5 – Glass Bead Kit – 7′ Door Height (84″)
- GB9 – Glass Bead Kit – 8′ Door Height (85″ – 96″)
- GB13 – Glass Bead Kit – 10′ Door Height (97″ – 120″)
- SN1 – Sex Nut Kit (2 per package)
- SSK- Security Torx Screw Kit
- Trim Functions
Technical Information:
- Minimum Stile – 2″ with standard 96 strike
- Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
- Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
- Fasteners – Machine and Self-Drilling Screws standard
Finishes:
- 605/US3 – Polished Brass
- 606/US4 – Brushed Brass
- 611/US9 – Polished Bronze
- 612/US10 – Brushed Bronze
- 613/US10B – Oil Rubbed Bronze
- 628/US28 – Aluminum Satin
- 629/US32 – Polished Stainless Steel
- 630/US32D – Brushed Stainless Steel
- 693/SPBLK – Black Painted
- 695/SP313 – Dark Bronze Painted
Attributes
Alternate Codes: F50-LD-630-36, F50LD63036
Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices
Certifications: A156.3, ADA, ANSI, BHMA, UL Listed, UL Listed 3 Hour
Device Width: 36″
Dogging: LD – Less Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Narrow Stile Surface Vertical Rod Exit
Exit Device Options: Ramped Endcap
Finish Code: 630
Finish Color: Satin Stainless Steel
Fire Rated: Yes
Fire Rating: 180 min
Grade: Grade 1
Handing: Right Handed Reverse
Manufacturer: Detex Corporation
Series: Advantex 50 Series
Strike Type: Dust Proof Bottom Strike (50 Series Only), Surface Strike
Weatherproof: No
