Description

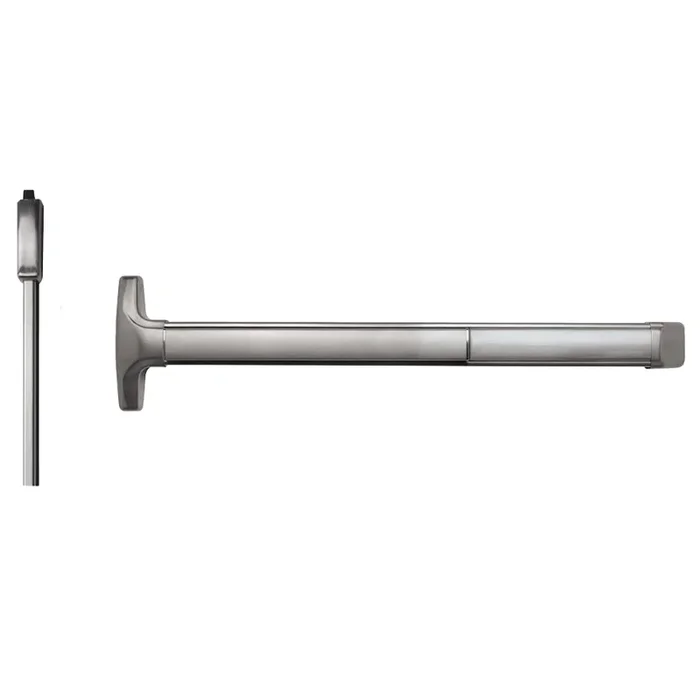

Detex F51-LD-630-36 Advantex Fire Rated Narrow Stile Surface Vertical Rod, Exit Only, 36in, Satin SS
Detex Corporation F51-LD-630-36 Advantex Fire Rated Narrow Stile Surface Vertical Rod (SVR) is a robust solution designed specifically for narrow stile double doors without a mullion. This exit-only device features a durable satin stainless steel finish, ensuring long-lasting performance even in high-use, high-abuse environments. With its heavy-duty construction, the F51 Series guarantees trouble-free service and enhanced security, thanks to the stainless steel rod covers. This top rod only exit device streamlines installation with a patented mounting plate and strike locator system, eliminating the need for cumbersome templates. The minimal door prep required not only saves time but also reduces installation costs. Field reversible and sizeable, this device adapts easily to various door configurations. The F51-LD model includes a stainless steel deadlocking top latch and offers flexibility with options like cylinder dogging. Certified to A156.3, ADA, ANSI, and UL standards, it boasts a 3-hour fire rating, making it a reliable choice for safety compliance. Ideal for wood, hollow metal, fiberglass, or aluminum doors, this exit device fits standard door thicknesses of 1-3/4″ to 2-1/4″. The F51-LD-630-36 is the perfect choice for professionals seeking a dependable and efficient panic exit solution.
Advantex Fire Rated Narrow Stile Surface Vertical Rod (SVR), TRO (Top Rod Only) – Same as LBR (Less Bottom Rod), Exit Only Device, No Trim, Less Dogging, 36in, 630/US32D Satin Stainless Steel
Notice: The info below is not item specific.
The F51 Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile double doors without a mullion. All 51 Series Top Rod Only exit devices are supplied with a rod cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
Benefits:
- Tough and durable design for years of trouble-free service in high-use, high-abuse environments
- Outside trims are easily changed or rekeyed without removing device from door
- Minimal door prep saves time and money
- Fast and easy installation saves time and money
- Heavy duty angled end cap deflects damage away from device
- Security enhanced by stainless steel rod covers, standard
- Patented mounting plate and strike locator replaces paper templates
Features:
- Stainless steel deadlocking top latch
- 1/8 turn hex or cylinder dogging
- All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process
- Handed – field reversible
- Field sizeable
Mechanical Options:
- F – 3-Hour Fire Rated
- AM – Anti-Microbial Coating
- HD – Hex Dogging (Std.)
- CD – Cylinder Dogging
- LD – Less Dogging
- 24 – Fits 24″ Door Width
- 30 – Fits 30″ Door Width
- 36 – Fits 36″ Door Width (Std.)
- 48 – Fits 48″ Door Width
- EC1 – Heavy duty angled end cap (Std.)
- EC2 – Flush end cap
- 84 – 84″ Door Height (Std.)
- 96 – 85″ to 96″ Door Height
- 120 – 97″ to 120″ Door Height
Electrical Options:
- Exit Alarm (EA)
- Electric Dogging (ED)
- Electric Latch Retraction (ER)
- Delayed Egress – Self Contained (EE)
- Delayed Egress with Latch Retraction (EE ER)
- Electric Unlock (EU)
- Request to Exit (EX)
- Request to Exit for High Voltage (EXV)
Accessories:
- GB6 – Glass Bead Kit – 7′ Door Height (84″)
- GB10 – Glass Bead Kit – 8′ Door Height (85″ – 96″)
- GB14 – Glass Bead Kit – 10′ Door Height (97″ – 120″)
- SN1 – Sex Nut Kit (2 per package)
- SSK- Security Torx Screw Kit
- Trim Functions
Technical Information:
- Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
- Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
- Minimum Stile – 2″ with standard 96 strike
- Fasteners – Machine and Self Drilling Screws standard
Finishes:
- 605/US3 – Polished Brass
- 606/US4 – Brushed Brass
- 611/US9 – Polished Bronze
- 612/US10 – Brushed Bronze
- 613/US10B – Oil Rubbed Bronze
- 628/US28 – Aluminum Satin
- 629/US32 – Polished Stainless Steel
- 630/US32D – Brushed Stainless Steel
- 693/SPBLK – Black Painted
- 695/SP313 – Dark Bronze Painted
Attributes
Alternate Codes: F51-LD-630-36, F51LD63036
Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices
Certifications: A156.3, ADA, ANSI, BHMA, UL Listed, UL Listed 3 Hour
Device Width: 36″
Dogging: LD – Less Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Narrow Stile Surface Vertical Rod Exit
Exit Device Options: Ramped Endcap
Finish Code: 630
Finish Color: Satin Stainless Steel
Fire Rated: Yes
Fire Rating: 180 min
Grade: Grade 1
Handing: Right Handed Reverse
Manufacturer: Detex Corporation
Options: Less Bottom Rod
Series: Advantex 51 Series
Strike Type: Dust Proof Bottom Strike (50 Series Only), Surface Strike
Weatherproof: No
