Description

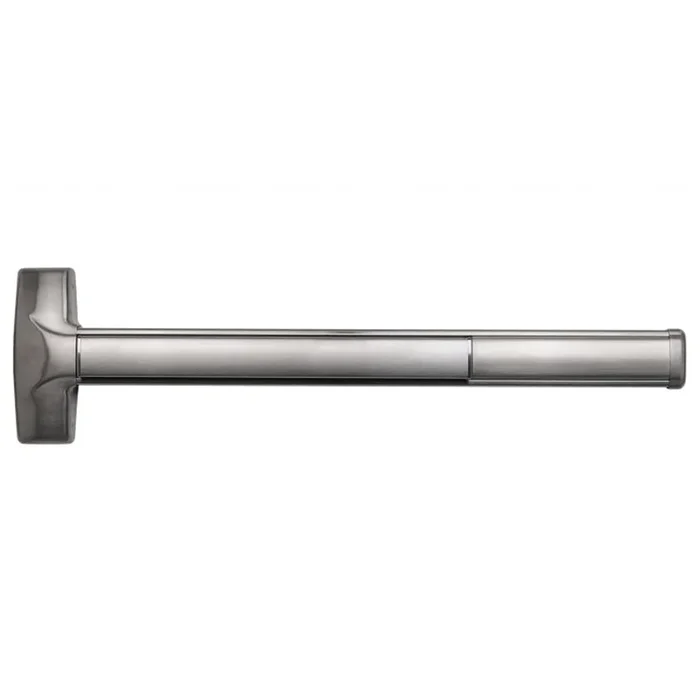

Detex F80-LD-630-48X96 Advantex Fire Rated Wide Stile CVR for Hollow Metal Door, Satin Stainless Steel
Detex Corporation F80-LD-630-48X96 Advantex Fire Rated Wide Stile Concealed Vertical Rod (CVR) is engineered for superior performance as a panic and fire exit device, ideal for hollow metal doors without a mullion. This exit-only device, measuring 48 inches in width and designed for door heights of 80 to 96 inches, combines durability with aesthetic appeal, making it a perfect choice for high-traffic environments. Crafted from satin stainless steel, this device features a heavy-duty angled end cap that minimizes damage while ensuring long-lasting service. The patented mounting plate system simplifies installation, saving both time and resources. With a 3-hour fire rating, the F80-LD-630 provides peace of mind without compromising on safety. The device includes a 6-position multi-step action top latch that enhances security by keeping both bolts retracted until the door closes. Its field-reversible handing allows for easy adjustments, while the fully adjustable top strike accommodates various weatherstrip thicknesses. This exit device requires minimal door preparation and is designed for straightforward maintenance, allowing outside trims to be changed without removing the device. With its robust construction and advanced features, the Detex Corporation F80-LD-630-48X96 is an exceptional choice for ensuring safety and compliance in commercial spaces.
Advantex Fire Rated Wide Stile Concealed Vertical Rod (CVR) for Hollow Metal Door, Exit Only Device, No Trim, Less Dogging, 48in x 80in-96in, 630/US32D Satin Stainless Steel
Notice: The info below is not item specific.
Designed to enhance the architectural aesthetics of any décor, the 80 and 81 series concealed vertical rod exit device is also super-heavy-duty panic and fire exit hardware for use on all types of hollow metal doors without a mullion. The patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.
Features:
- Tough and durable design for years of trouble-free service in high-use, high-abuse environments
- Minimal door prep saves time and money
- Heavy duty angled end cap deflects damage away from device
- Fast and easy installation saves time and money
- Except for 03WSV, outside trims are easily changed or rekeyed without removing device from door
- 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door
- Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
- Top strike both secures the door and re-engages the latchbolts
- Patented deadlocking of top (80 and 81 series) and bottom bolt (80 series) assemblies
- Durable steel bottom drop bolt (80 series)
- Rods are easily adjustable with rods installed in door
- Handed – field reversible
- Field sizeable
- 1/8 turn dogging
Mechanical Options:
- F: 3-Hour fire rating without astragal up to 10 foot (steel) door
- AM: Anti-microbial coating
- HD: Hex dogging (std.)
- CD: Cylinder dogging
- SLR: Silencer
- 24: Fits 24″ door width
- 30: Fits 30″ door width
- 36: Fits 36″ door width (std.)
- 48: Fits 48″ door width
- EC1: Heavy duty angled end cap (standard on 630, 606, 612, 613, 605, 611 & 629 finishes only)
- EC2: Flush end cap (standard on 628, 693 & 695 finishes only), specify when used on 2″ – 3-1/2″ stiles
Electrical Options:
- EA: Exit alarm
- ED: Electric dogging
- ER: Electric latch retraction
- EE: Delayed egress self-contained
- EX: Request to exit
- EXV: Request to exit for high voltage
- EE ER: Electric delayed egress with latch retraction
Specifications:
- Door Types: Hollow metal
- Door Thickness: Fits standard 1-3/4″ – 2-1/4″
- Minimum Stile: 5″
- Fasteners: Machine and self-drilling screws standard
- Rail is heavy ribbed aluminum extrusion
Finishes:
- 605/US3 – Polished brass
- 606/US4 – Brushed brass
- 611/US9 – Polished bronze
- 612/US10 – Brushed bronze
- 613/US10B – Oil rubbed bronze
- 628/US28 – Aluminum satin
- 629/US32 – Polished stainless steel
- 630/US32D – Brushed stainless steel
- 693/SPBLK – Black painted
- 695/SP313 – Dark bronze painted
Attributes
Ship via: No UPS – Common Carrier Only
Alternate Codes: DTXF80-LD-630-48, F80-LD-630-48, F80LD63048
Category: Commercial Electric Locks, CVR Panic Devices, Electric Locks, Glass Aluminum Hardware, Lock Sets, Narrow Style Electric Locks, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Standalone/Pushbutton Locks
Certifications: A156.3, ADA, ANSI, BHMA, UL Listed, UL Listed 3 Hour
Device Width: 48″
Dogging: LD – Less Dogging
Door Application: Panic Devices & Exit Alarms
Door Height: 80-96″
Door Type: Hollow Metal
Exit Device Category: Concealed Vertical Rod Exit CVR
Exit Device Options: Ramped Endcap
Finish Code: 630
Finish Color: Satin Stainless Steel
Fire Rated: Yes
Fire Rating: 180 min
Grade: Grade 1
Handing: Field Reversible, Right Handed Reverse
Manufacturer: Detex Corporation
Series: Advantex 80 Series
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
