Description

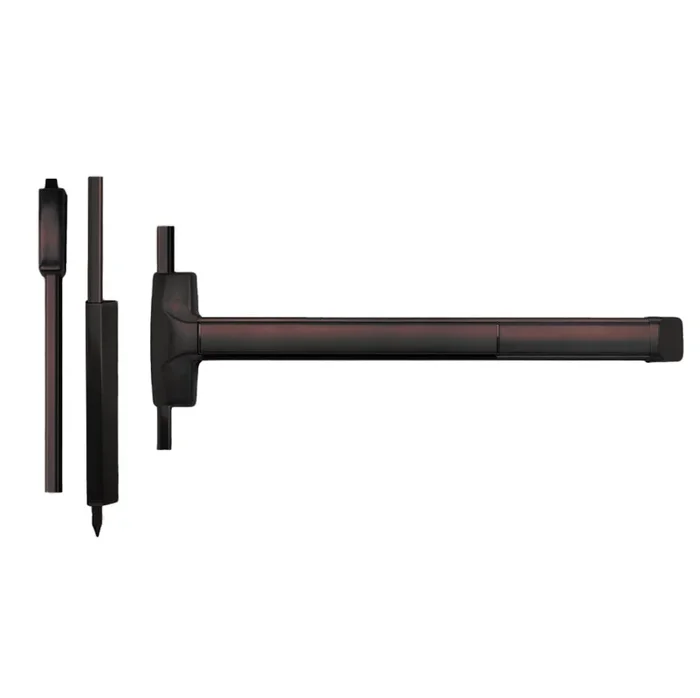

Detex FT27-LD-695-48 Advantex Fire/Wind Rated High Security SVR Exit Device, 48in, Dark Bronze
Detex Corporation FT27-LD-695-48 Advantex Fire/Wind Rated High Security Surface Vertical Rod (SVR) Exit Only Device is engineered for top-tier security and reliability. Designed for double doors without a mullion, this super-heavy-duty exit device excels in high-use and high-abuse environments. Its robust construction ensures years of trouble-free operation, while oversized, heavy-duty relatching top and bottom bolts enhance security. Installation is a breeze thanks to the patented mounting plate and strike locator system, which eliminates the need for complicated templates. With minimal door preparation, you can save both time and money. The device features a stainless steel deadlocking top latch and a hardened steel bottom drop bolt, further increasing its durability. Additionally, the angled end cap is built to deflect damage away from the device, ensuring longevity. The FT27-LD-695-48 is fire-rated for 3 hours and offers the flexibility of being field-reversible and sizeable to fit standard door widths of up to 48 inches. Finished in a sleek dark bronze, this exit device is both aesthetically pleasing and functional. Certified to A156.3, ADA, ANSI, and UL standards, it’s a reliable choice for any professional looking to enhance safety and security in commercial spaces.
Advantex Fire/Wind Rated High Security Surface Vertical Rod (SVR) Exit Only Device, No Trim, Less Dogging, 48in, 695/SP313 Dark Bronze Painted
Notice: The info below is not item specific.
The FT27 Series high security surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of double doors without a mullion. The 27 Series is available with both top and bottom rods, but not available with top rod only. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
Benefits:
- Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
- Security enhanced by oversized, heavy duty relatching top and bottom bolts
- Patented mounting plate and strike locator replaces paper templates
- Minimal door prep saves time and money
- Outside trims are easily changed or rekeyed without removing device from door
- Fast and easy installation saves time and money
- Heavy duty angled end cap deflects damage away from device
Features:
- Stainless steel deadlocking top latch
- Hardened steel bottom drop bolt with optional dust proof strike
- Handed – field reversible
- Field sizeable
- Bottom bolt cover
- 1/8 turn hex or cylinder dogging
- All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process
Mechanical Options:
- T – Tornado/Windstorm Rated (FEMA 361) – up to 42″ wide and 88″ height
- F – 3-Hour Fire Rated
- AM – Anti-Microbial Coating
- HD – Hex Dogging (Std.)
- CD – Cylinder Dogging
- LD – Less Dogging
- 24 – Fits 24″ Door Width
- 30 – Fits 30″ Door Width
- 36 – Fits 36″ Door Width (Std.)
- 48 – Fits 48″ Door Width
- 84 – 84″ Door Height (Std.)
- 96 – 85″ to 96″ Door Height
- 120 – 97″ to 120″ Door Height
Electrical Options:
- Exit Alarm (EA)
- Electric Dogging (ED)
- Electric Latch Retraction (ER)
- Delayed Egress – Self Contained (EE)
- Delayed Egress with Latch Retraction (EE ER)
- Electric Unlock (EU)
- Request to Exit (EX)
- Request to Exit for High Voltage (EXV)
Accessories:
- GB3 – Glass Bead Kit – 7′ Door Height (84″)
- GB7 – Glass Bead Kit – 8′ Door Height (85″ – 96″)
- GB11 – Glass Bead Kit – 10′ Door Height (97″ – 120″)
- SN1 – Sex Nut Kit (2 per package)
- SSK- Security Torx Screw Kit
- Trim Functions
Technical Information:
- Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
- Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
- Minimum Stile – 4-1/2″ with standard 97 strike
- 1-1/2″ minimum frame stop width
- Fasteners – Machine and Self-Drilling Screws standard
Finishes:
- 605/US3 – Polished Brass
- 606/US4 – Brushed Brass
- 611/US9 – Polished Bronze
- 612/US10 – Brushed Bronze
- 613/US10B – Oil Rubbed Bronze
- 628/US28 – Aluminum Satin
- 629/US32 – Polished Stainless Steel
- 630/US32D – Brushed Stainless Steel
- 693/SPBLK – Black Painted
- 695/SP313 – Dark Bronze Painted
Attributes
Alternate Codes: FT27-LD-695-48, FT27LD69548
Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices
Certifications: A156.3, ADA, ANSI, BHMA, UL Listed, UL Listed 3 Hour
Device Width: 48″
Dogging: LD – Less Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Surface Vertical Rod Exit SVR
Exit Device Options: Ramped Endcap
Finish Code: 695
Finish Color: Dark Bronze, Sprayed Duranotic
Fire Rated: Yes
Fire Rating: 180 min
Function: Exit Only
Grade: Grade 1
Manufacturer: Detex Corporation
Series: Advantex 27 Series
Strike Type: Surface Strike
Trim Option: Less Trim
Weatherproof: No
