Description

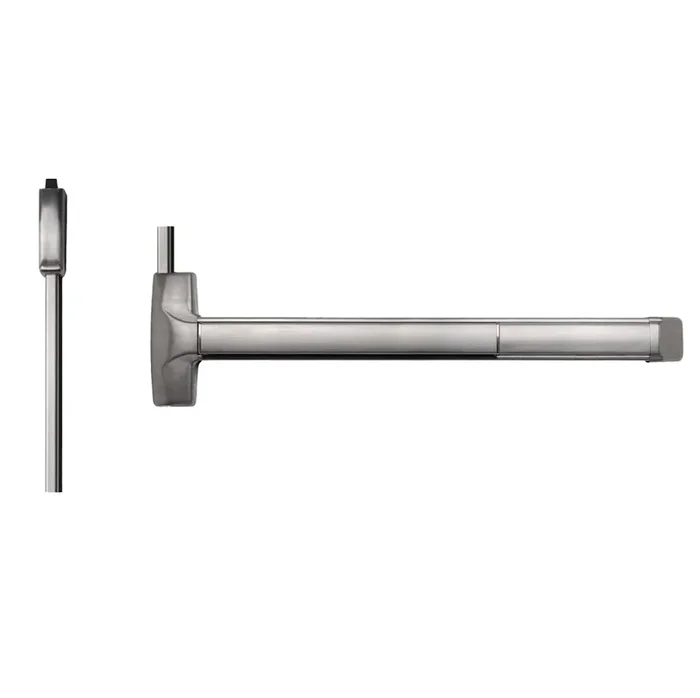

Detex FH21-LD-630-48 Advantex Fire/Wind Rated 48in Surface Vertical Rod, Satin Stainless Steel
Detex Corporation FH21-LD-630-48 Advantex Fire/Wind Rated Wide Stile Surface Vertical Rod (SVR) is engineered for superior performance in high-use environments, making it an ideal choice for double doors without a mullion. This top rod only exit device, featuring a sleek 48-inch satin stainless steel finish, combines robust construction with advanced safety features.Designed to withstand the rigors of daily wear and tear, the FH21 Series is built with a stainless steel deadlocking top latch and an innovative angled end cap that deflects damage away from the device, ensuring longevity and reliability. Its patented mounting plate and strike locator system streamline installation, eliminating the need for cumbersome templates and saving valuable time and resources. The device is fire rated for up to 180 minutes and meets stringent certifications, including A156.3 and ANSI standards, enhancing its security credentials. Additionally, outside trims can be easily changed or rekeyed without removing the device, providing flexibility for building professionals.With features such as field-reversible handing and minimal door prep requirements, the Detex FH21-LD-630-48 is a practical solution for any panic exit scenario, ensuring safety and peace of mind for both building owners and occupants.
Advantex Fire/Wind Rated Wide Stile Surface Vertical Rod (SVR), TRO (Top Rod Only) – Same as LBR (Less Bottom Rod), Exit Only Device, No Trim, Less Dogging, 48in, 630/US32D Satin Stainless Steel
Notice: The info below is not item specific.
The FH21 Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of double doors without a mullion. All 21 Series Top Rod Only exit devices are supplied with rod cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
Benefits:
- Tough and durable design for years of trouble-free service in high-use, high-abuse environments
- Outside trims are easily changed or rekeyed without removing device from door
- Minimal door prep saves time and money
- Heavy duty angled end cap deflects damage away from device
- Security enhanced by stainless steel rod covers, standard
- Patented mounting plate and strike locator system replaces paper templates
- Fast and easy installation saves time and money
Features:
- Stainless steel deadlocking top latch
- 1/8 turn hex or cylinder dogging
- All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process.
- Handed – field reversible
- Field sizeable
Mechanical Options:
- F – 3-Hour Fire Rated
- AM – Anti-Microbial Coating
- HD – Hex Dogging (Std.)
- CD – Cylinder Dogging
- LD – Less Dogging
- 24 – Fits 24″ Door Width
- 30 – Fits 30″ Door Width
- 36 – Fits 36″ Door Width (Std.)
- 48 – Fits 48″ Door Width
- 84 – 84″ Door Height (Std.)
- 96 – 85″ to 96″ Door Height
- 120 – 97″ to 120″ Door Height
Electrical Options:
- Exit Alarm (EA)
- Electric Dogging (ED)
- Electric Latch Retraction (ER)
- Delayed Egress – Self Contained (EE)
- Delayed Egress with Latch Retraction (EE ER)
- Electric Unlock (EU)
- Request to Exit (EX)
- Request to Exit for High Voltage (EXV)
Accessories:
- GB4 – Glass Bead Kit – 7′ Door Height (84″)
- GB8 – Glass Bead Kit – 8′ Door Height (85″ – 96″)
- GB12 – Glass Bead Kit – 10′ Door Height (97″ – 120″)
- SN1 – Sex Nut Kit (2 per package)
- SSK- Security Torx Screw Kit
- Trim Functions
Technical Information:
- Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
- Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
- Minimum Stile – 4-1/2″ with standard 97 strike
- Fasteners – Machine and Self-Drilling Screws standard
Finishes:
- 605/US3 – Polished Brass
- 606/US4 – Brushed Brass
- 611/US9 – Polished Bronze
- 612/US10 – Brushed Bronze
- 613/US10B – Oil Rubbed Bronze
- 628/US28 – Aluminum Satin
- 629/US32 – Polished Stainless Steel
- 630/US32D – Brushed Stainless Steel
- 693/SPBLK – Black Painted
- 695/SP313 – Dark Bronze Painted
Attributes
Alternate Codes: FH21-LD-630-48, FH21LD63048
Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices
Certifications: A156.3, ADA, ANSI, BHMA, UL Listed
Device Width: 48″
Dogging: LD – Less Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Surface Vertical Rod Exit SVR
Exit Device Options: Ramped Endcap
Finish Code: 630
Finish Color: Satin Stainless Steel
Fire Rated: Yes
Fire Rating: 180 min
Function: Exit Only
Grade: Grade 1
Manufacturer: Detex Corporation
Options: Less Bottom Rod
Series: Advantex 21 Series
Strike Type: Surface Strike
Trim Option: Less Trim
Weather Rating: Hurricane Device
Weatherproof: No
