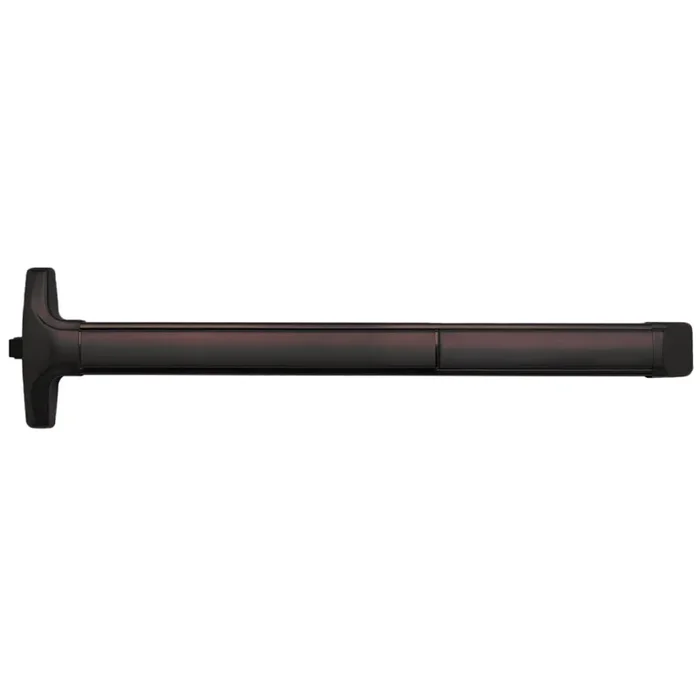

Detex H40-LD-695-48 Advantex Narrow Wind Rated Rim Device, No Trim, 48in, Dark Bronze
Detex Corporation H40-LD-695-48 Advantex Narrow Wind Rated Stile Rim Device offers an exceptional solution for high-use environments requiring reliable panic and fire exit hardware. Designed specifically for narrow stile single and double doors, this super-heavy-duty exit device features a patented mounting plate and strike locator system that ensures hassle-free and precise installation, eliminating the need for cumbersome paper templates. Constructed for durability, the H40 series is built to endure the rigors of high-abuse settings, promising years of trouble-free service. The device includes a stainless steel deadlocking Pullman-type latch bolt and a heavy-duty angled end cap that effectively deflects damage. Its non-handed design allows for versatile installation on various door types, including wood, hollow metal, fiberglass, and aluminum, accommodating standard door thicknesses from 1-3/4″ to 2-1/4″. With a sleek dark bronze painted finish, the H40-LD-695-48 blends seamlessly with contemporary designs. The exit device is field sizeable and features 1/8 turn dogging for added convenience. Additionally, outside trims can be easily changed or rekeyed without removing the device from the door, enhancing its practicality and ease of use. Certified to meet A156.3, ADA, ANSI, and UL standards, this exit device is a reliable choice for safety and security.
Advantex Narrow Wind Rated Stile Rim Device, No Trim, Less Dogging, 48in, 695/SP313 Dark Bronze Painted
Notice: The info below is not item specific.
The H40 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
Benefits:
- Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
- Patented mounting plate and strike locator replaces paper templates
- Minimal door prep saves time and money
- Heavy duty angled end cap deflects damage away from device
- Outside trims are easily changed or rekeyed without removing device from door
- Fast and easy installation saves time and money
Features:
- Stainless steel deadlocking, Pullman-type latch bolt
- Non-handed
- All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
- 1/8 turn dogging
- Field sizeable
Mechanical Options:
- F – 3-Hour Fire Rated
- H – Hurricane Rated
- AM – Anti-Microbial Coating
- HD – Hex Dogging (Std.)
- CD – Cylinder Dogging
- LD – Less Dogging
- 98 – Semi Mortise Strike (Std.)
- 99 – Surface Strike
- 24 – Fits 24″ Door Width
- 30 – Fits 30″ Door Width
- 36 – Fits 36″ Door Width (Std.)
- 48 – Fits 48″ Door Width
- EC1 – Heavy duty angled end cap (Std.)
- EC2 – Flush end cap
Electrical Options:
- Exit Alarm (EA)
- Electric Dogging (ED)
- Electric Integration (EI)
- Electric Latch Retraction (ER)
- Delayed Egress – Self Contained (EE)
- Delayed Egress with Latch Retraction (EE ER)
- Electric Unlock (EU2W)
- Latch Bolt Signaling (LX)
- Latch Bolt Signaling for High Voltage (LXV)
- Electric Switching (ES)
- Request to Exit (EX)
- Request to Exit for High Voltage (EXV)
Accessories:
- GB2 – Glass Bead Kit
- SN1 – Sex Nut Kit (2 per package)
- SSK – Security Torx Screw Kit
- Trim Functions
Technical Information:
- Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
- Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
- Minimum Stile – 4-3/4″
- Machine and Self-Drilling Screws (Std.)
- Optional Sex Nuts for wood or composite doors
- Security Torx screws available
Finishes:
- 605/US3 – Polished Brass
- 606/US4 – Brushed Brass
- 611/US9 – Polished Bronze
- 612/US10 – Brushed Bronze
- 613/US10B – Oil Rubbed Bronze
- 628/US28 – Aluminum Satin
- 629/US32 – Polished Stainless Steel
- 630/US32D – Brushed Stainless Steel
- 693/SPBLK – Black Painted
- 695/SP313 – Dark Bronze Painted
Attributes
Alternate Codes: H40-LD-695-48, H40LD69548
Category: Glass Aluminum Hardware, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Certifications: A156.3, ADA, ANSI, BHMA, UL Listed
Device Width: 48″
Dogging: LD – Less Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Narrow Stile Rim Exit
Exit Device Options: Ramped Endcap
Finish Code: 695
Finish Color: Dark Bronze, Sprayed Duranotic
Function: Exit Only
Grade: Grade 1
Manufacturer: Detex Corporation
Series: Advantex 40 Series
Strike Type: Semi-Mortise Strike
Weather Rating: Hurricane Device
Weatherproof: No
