Description

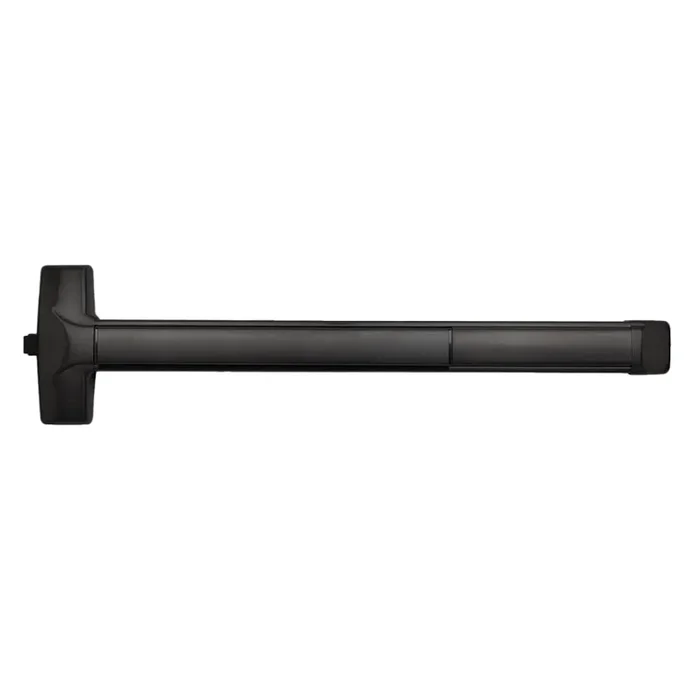

Detex H10-LD-693-48 Advantex Wind Rated Wide Stile Rim Exit Device, 48in, Black Powder Coated
Detex Corporation H10-LD-693-48 Advantex Wind Rated Wide Stile Rim Exit Only Device offers an unparalleled blend of durability and functionality for high-traffic environments. Designed for both single and double doors, this super-heavy-duty panic device is engineered to withstand the rigors of everyday use while ensuring safety during emergencies. The patented mounting plate and strike locator system simplifies installation, eliminating the need for paper templates and making setup faster and more accurate. Constructed from tough materials, the H10 Series promises years of reliable service, featuring a heavy-duty angled end cap that deflects damage away from the device. Its stainless steel deadlocking, Pullman-type latch bolt is non-handed and field sizeable, allowing for flexibility in various door configurations. With a sleek black powder-coated finish, the device meets rigorous testing standards, having surpassed 1,000,000 cycles-twice the required threshold for Grade 1 UL certification. The H10-LD-693-48 is also hurricane-rated, ensuring it performs in extreme weather conditions.This exit device is compatible with standard door thicknesses of 1-3/4″ to 2-1/4″ and is certified to A156.3, ADA, ANSI, and BHMA standards. Its streamlined design, combined with minimal door prep requirements, makes it an ideal choice for professionals seeking both safety and efficiency.
Advantex Wind Rated Wide Stile Rim Exit Only Device, No Trim, Less Dogging, 48in, 693/SPBLK Black Powder Coated
Notice: The info below is not item specific.
The H10 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
Benefits:
- Tough and durable design for years of trouble-free service in high-use, high-abuse environments
- Patented mounting plate and strike locator system replaces paper templates
- Fast and easy installation saves time and money
- Minimal door prep saves time and money
- Outside trims are easily changed or re-keyed without removing device from door
- Heavy duty angled end cap deflects damage away from device
Features:
- All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
- Tested beyond 1,000,000 cycles – Twice the cycling required for Grade 1 UL testing
- Non-handed
- Stainless steel deadlocking, Pullman-type latch bolt
- Field sizeable
- 1/8 turn hex or cylinder dogging
Mechanical Options:
- F – 3-Hour Fire Rated
- H – Hurricane Rated
- AM – Anti-Microbial Coating
- CD – Cylinder Dogging
- HD – Hex Dogging (Std.)
- LD – Less Dogging
- SLR – Silencer
- 99 – Surface Strike (Std.)
- 98 – Semi Mortise Strike
- EC1 – Heavy duty angled end cap (Std.)
- EC2 – Flush end cap
- 24 – Fits 24″ Door Width
- 30 – Fits 30″ Door Width
- 36 – Fits 36″ Door Width (Std.)
- 48 – Fits 48″ Door Width
Electrical Options:
- Exit Alarm (EA)
- Electric Dogging (ED)
- Electric Latch Retraction with Request to Exit Switch (ER EX)
- Delayed Egress – Self Contained (EE)
- Delayed Egress with Latch Retraction (EE ER)
- Electric Integration (EI)
- Electric Unlock (EU)
- Latch Bolt Signaling (LX)
- Latch Bolt Signaling for High Voltage (LXV)
- Electric Switching (ES)
- Request to Exit (EX)
- Request to Exit for High Voltage (EXV)
Accessories:
- GB1 – Glass Bead Kit
- SN1 – Sex Nut Kit (2 per package)
- SSK – Security Torx Screw Kit
- Trim Functions (see Outside Trims)
Technical Information:
- Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
- Door Thickness – Fits standard 1-3/4″ – 2-1/4″ doors
- Minimum Stile – 4-5/8″ with standard 99 strike; 4-1/8″ with optional 98 strike
- Fasteners – Machine and Self- Drilling Screws standard
Finishes:
- 605/US3 – Polished Brass
- 606/US4 – Brushed Brass
- 611/US9 – Polished Bronze
- 612/US10 – Brushed Bronze
- 613/US10B – Oil Rubbed Bronze
- 628/US28 – Aluminum Satin
- 629/US32 – Polished Stainless Steel
- 630/US32D – Brushed Stainless Steel
- 693/SPBLK – Black, Painted
- 695/SP313 – Dark Bronze, Painted
Attributes
Alternate Codes: H10-LD-693-48, H10LD69348
Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices
Certifications: A156.3, ADA, ANSI, BHMA, UL Listed
Device Width: 48″
Dogging: LD – Less Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Rim Exit
Exit Device Options: Ramped Endcap
Finish Code: 693
Finish Color: Black, Black Powder Coat, Sprayed Black
Function: Exit Only
Grade: Grade 1
Manufacturer: Detex Corporation
Series: Advantex 10 Series
Strike Type: Surface Non-Roller Strike
Trim Option: Less Trim
Weather Rating: Hurricane Device
Weatherproof: Yes
