Description

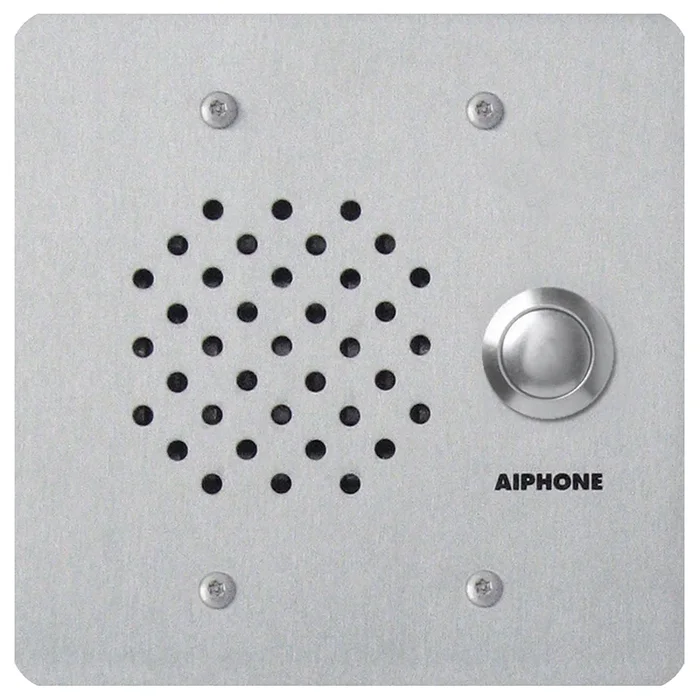

Aiphone LE-SS/A Flush Mount 2-Gang Substation
Aiphone LE-SS/A Flush Mount 2-Gang Sub Station offers a robust solution for audio communication needs in commercial environments. Designed as part of the LEF Series, this selective calling open voice system supports up to 11 stations, providing flexibility in configuration to suit various applications. The stainless steel finish ensures durability while enhancing its aesthetic appeal, making it suitable for both interior and exterior installations. This audio-only system features a user-friendly interface that allows for hands-free communication. With the ability to intermix 3, 5, and 10-call master stations, the LE-SS/A ensures maximum security and streamlined communication. Users can initiate calls via a selector button, with clear tones indicating incoming calls for efficient operation. Key specifications include a 12V DC power source (PS-1225UL recommended), a communication output of 500mW, and weatherproof capabilities for outdoor use. The unit also accommodates door release features with a contact rating of 24V DC, 1A, ensuring seamless integration into existing security systems.With a compact design measuring 4-3/4″ x 4-3/4″, this flush mount sub station is ideal for a variety of installations. The LE-SS/A stands out as an essential component in enhancing communication and security for any commercial property.
FLUSH MOUNT 2-GANG SUB-STATION
Flush Mount 2-Gang Sub Station, Stainless Steel
The LEF Series is a selective calling open voice, audio only system with the capacity of up to 11 total stations. The system can be designed to meet a wide variety of needs, including any combination of master and sub stations, up to its mAXimum capacity.
Audio only, selective calling, open voice system.
Has 3, 5 and 10-call masters andyou can intermix system with any number of masters and subs to maximum security.
- Power Source:12V DC – Use PS-1225UL
- Communication:Sub calls in with call-tone and LED, 20 sec. Depress the LED selector button, use TALK/LISTEN switch. Master calls in with tone or voice (no LED lit), reply hands-free. To call, depress a selector, and call by voice or tone Chime available with BG-10C
- Communication Output:500mW
- Door release:RY-PA Contact rating: 24V DC, 1A Use 1 RY-PA per door being released
- Wiring:Varies by system, see instruction manual or contact technical support
Attributes
Commercial Residential: Commercial
Communication: Voice
Door Panel Enviroment: Weatherproof
Door Panel Mount: Flush
Installation: Commercial
Internal Communication: No
Operating Voltage: 12 VDC
Pack Qty: 1
Series: LEF Hands-Free Selective Call System
Station Mount: Flush
Station Size: 4-3/4″x4-3/4″
Station Type: Open Voice
Subtype: Intercoms
Type: Intercoms
Unit of Measure: Each
Upc: 7.88E+11
Wire Required: 822202 or 821802
Resources
- 3 LEF-10C with All Call and One Door Diagram
- BA-1 Paging Adapter Instructions
- BG-10C All Call and Chime Adaptor
- BG-10C Instructions
- LE-D, LE-DA Instructions
- LE-DL Instructions for LEF System Door Station
- LE-SS / LESSR Vandal and Weather Resistant Sub Station Specs
- LE-SS/A, LE-SSR – for LEF, LEM, AP, MP Systems
- LEF Series Brochure
- LEF Series Instructions
- LEF-10 10-Call Master Station
- LEF-10C 10-Call Semi-Flush Mount Master Station
- LEF-10S 10-Class Master Station with All Call Button
- LEF-1301 Exit Signaling Guide
- LEF-1302 Reducing RFI Guide
- LEF-1303 Power Surge Guide
- LEF-1304 Adding K Terminals Guide
- LEF-1305 Eliminate Call Tone Guide
- LEF-1306 Volume Control at Sub Station Guide
- LEF-1307 Monitoring Indicator on LE Series Substation Guide
- LEF-1308 Tape Recorder Output Guide
- LEF-1309 Selective Door Release Guide
- LEF-1310 Various Relay Contacts Using the LEF System Guide
- LEF-1311 Signal Call Sub Station to Receive All Call and BGM Guide
- LEF-1312 Separate Transmit and Receive Volume Controls Guide
- LEF-1313 Increase LED Timing Circuit Guide
- LEF-1316 Convert Privacy Switch to Full Time Privacy Mode Guide
- LEF-1C Instructions
- LEF-1C Sub Master Station
- LEF-3 3-Call Master Station
- LEF-3C 3-Call Semi-Flush Mount Master Station
- LEF-3C, LEF-5C, LEF-10C Master Sentry Semi-Flush Mount Loudspeaker System
- LEF-3L 3-Call Master Station w Selective Door Release
- LEF-3L Instructions
- LEF-5 5-Call Master Station
- LEF-5C 5-Call Semi-Flush Mount Master Station
- LEF-C Semi-Flush Mount Speaker System Instructions
- LS-NVP/C Vandal Proof Sub Station Instructions
- SP-20N Flush Mount Ceiling Speaker Sub Station
