Description

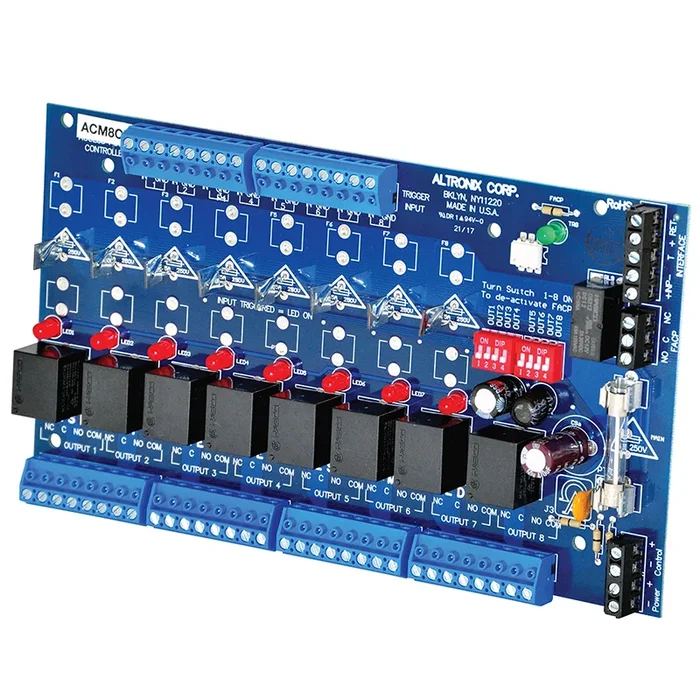

Altronix ACM8CB Power Supply
ACM8CB converts one (1) 12 to 24 volt AC or DC input into eight (8) independently controlled PTC protected outputs. These power outputs can be converted to dry form “C” contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The ACM8CB will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
Attributes
Alternate Codes: ACM8CB
Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies
Commercial Residential: Commercial
Installation: Commercial
Pack Qty: 1
Purpose: Access Control
Series: Altronix Power Supplies
Ship Weight: 1.2 lbs.
Subtype: Power Supply
Type: Wire-In Transformer
Unit of Measure: Each
Resources
- 2016-2017 Altronix Product Catalog
- 2020 Altronix Product Guide
- 2022 Altronix Price Book
- AL175UL Instructions
- AL175ULX Instructions
- Altronix Featured IP & Power Products
- Altronix Featured IP & Power Products
- Altronix NetWay Spectrum Series Catalog
- Altronix NetWay Spectrum Series Catalog
- Spec Sheet
- Spec Sheet
