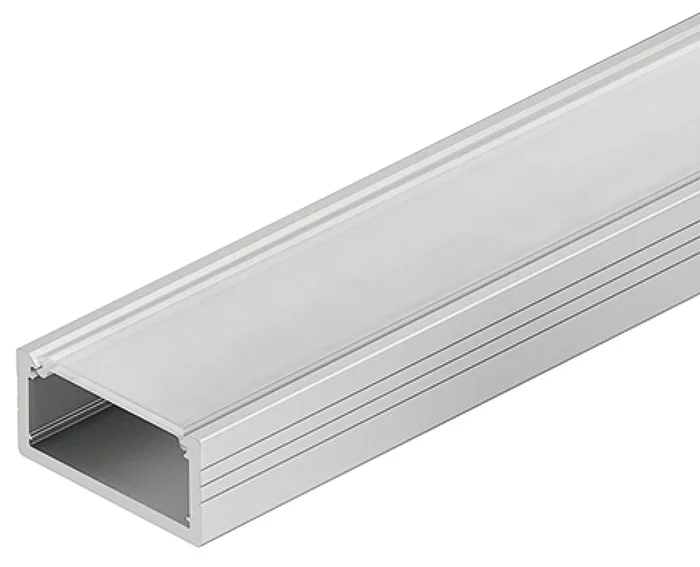

Hafele 833.72.863 Hafele Loox5 2190 Aluminum Profile for LED Strip Lights
Hafele 833.72.863 Aluminum Profile, Hafele Loox5 Profile 2190 for LED strip lights offers a sleek and sophisticated solution for your lighting needs. Designed for surface mounting, this profile features a frosted diffuser that enhances the light output, creating a soft, velvet-white glow that adds an elegant touch to any space. Measuring 2,500 mm (98 3/8 inches) in length and 3/4 inch in width, the aluminum profile is both durable and aesthetically pleasing with its silver anodized finish. This profile is supplied with one profile and one diffuser, making installation straightforward. For optimal performance, it’s important to note that the clip connector LED 3015 is not rated for continuous duty (less than 8 hours), and shallow profiles are not compatible with LED 3028. The design allows for LED points to be visible, ensuring a modern appearance. The milk cover contains pigment, producing a diffused glow with uniform intensity, while the frosted cover creates a sophisticated look. Whether you’re illuminating a residential or commercial space, the Hafele 833.72.863 provides both functionality and style, making it an excellent choice for discerning builders and homeowners alike.
Aluminum Profile, Hafele Lighting Profile 2190
Surface Mounting, Cover: Frosted
Please note the dimensions of the clip connector LED 3015 is not rated for continuous duty (less than 8 hours) Please note shallow profiles are not suitable for operation with LED 3028 LED points are always visible when this profile is used.
Milk cover: The material contains pigment. – Creates a “diffused glow” surface-directed light with uniform intensity – The light appears “soft” Frosted cover: The surface is frosted -The light appears “velvet-white” and creates a sophisticated, high-quality impression
Attributes
Color/finish: Profile: Silver colored, anodizedDiffuser: Frosted
Height (inch): 3/8″
Installation: Screwing onto
Length: 2,500.00 mm
Length (inch): 98 3/8″
Material: Profile: Aluminum, Diffuser: Plastic
Suitable for: Use with LED strip lights up to 12 mm (15/32″) wide
Supplied with: 1 profile 1 diffuser
Width (inch): 3/4″
Resources
- CAD data
- Hafele_Lighting_ 2024 | Page 216
- Installing a Surface Mount Profile for LED Lighting
- Loox – Electrical Code Compliance
