Description

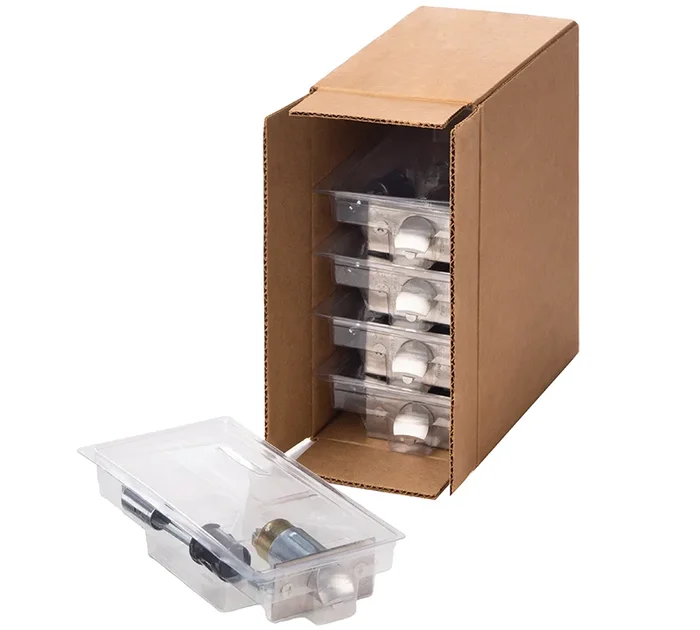

Schlage ALX FK 50 626 234 ALX Series Office Entry Kit, 2-3/4″ Backset, Satin Chrome Finish
Schlage Commercial ALXFK50626234 ALX Series Entry Office Function Kit offers a robust solution for your commercial locking needs, tailored for maximum security and usability. Designed to accommodate doors ranging from 1-3/8″ to 1-3/4″ thick, this kit features a durable 2-3/4″ backset latch, ensuring a seamless fit for various door applications. The satin chrome finish not only enhances its aesthetic appeal but also provides a resilient surface that withstands everyday wear and tear. With a reversible handing, the ALXFK50626234 is versatile enough to fit any entry office setup, while the 1-1/8″ x 2-1/4″ latch faceplate dimension ensures compatibility with standard door frames. Made from high-quality steel and zinc dichromated materials, this lockset is built for longevity, backed by a 10-year limited warranty. Furthermore, the kit is UL listed for use on 3-hour fire doors, adding an essential layer of safety to your building. Ideal for high-traffic areas requiring reliable access control, the Schlage ALX Series Entry Office Function Kit combines functionality with peace of mind, making it an excellent choice for commercial environments.
ALX Series Entry Office Function Kit with 2-3/4″ Backset Latch Satin Chrome Finish
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ALX FK 50 626 234, ALXFK50626234, FK50626
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F82 – Entry
Ansi Function : Entry
Backset: 2-3/4″ Backset
Base Series: ALX Series
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Door Range: 1-3/8″ to 1-3/4″
Door Thickness: 1-3/8 In. – 1-3/4 In.
Finish: Satin Chrome
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
For Use With: Schlage ALX Series Levers
Function: 50-Entrance Office Lock
Function Family: Entrance
Grade: Grade 2
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Faceplate Dimension: 1-1/8″ x 2-1/4″
Latch Number: 47267042
Latch Type: Dead Latch (Guarded)
Limited Warranty: 10 Years
Manufacturer Function: Entrance/Office Lock
Manufacturer Function : Push-button locking. Push-button locks outside lever until unlocked with key or by turning inside lever. Inside lever is always free for immediate egress.
Manufacturer Warranty: 10 Year Limited Warranty
Material: Steel, Zinc Dichromated
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Qty: 1
Series: ALX Series
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 47267042
Std Latch Type: Dead Latch (Guarded)
Subcategory: Commercial Parts
Subtype: Lock Parts
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Resources
- 2022 Schlage Commercial Price Book
- ALX Configure Chart
- ALX Cylinders and Keyways Reference Guide
- ALX Key Systems, Cylinders and Keys Catalog
- ALX Key Systems, Cylinders and Keys Catalog
- ALX Series Cut Sheet
- ALX Series Lever Locks Cut Sheet
- ALX Series Product Catalog
- ALX Series Service Manual
- Schlage ALX Series Installation Instructions
- Schlage ALX Series Sell Sheet
- Schlage Finishes Chart
- Von Duprin Finishes Chart
