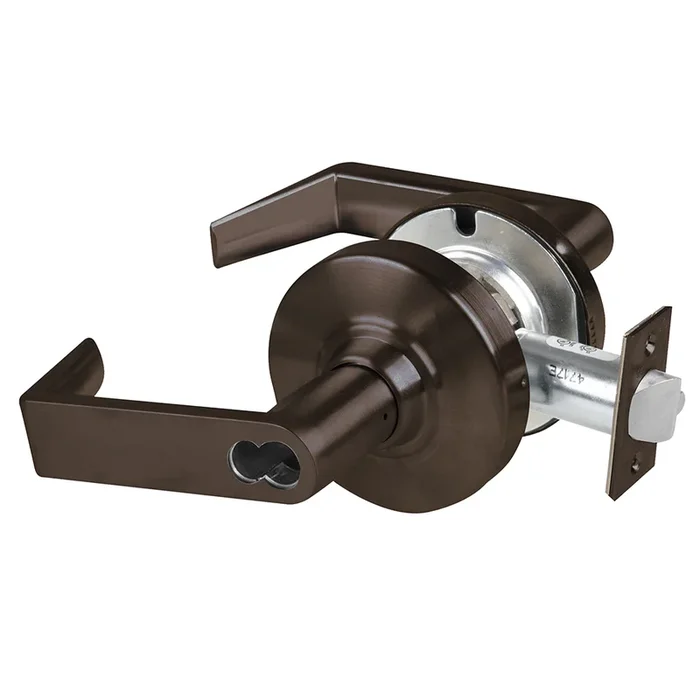

Schlage ALX53B RHO 613 ALX Series Grade 2 Rhodes Lever Lock, Small Format IC Prep, Oil Rubbed Bronze
Schlage Commercial ALX53BRHO613 ALX Series Grade 2 Entry Rhodes Lever Lock offers a robust and reliable solution for commercial door security. Designed with a small format IC prep less core, this lockset features a 2-3/4″ deadlatch and ANSI strike, ensuring compatibility with a wide range of door applications. The oil-rubbed bronze finish not only enhances aesthetics but also provides durability against wear and tear. This entry lockset is suitable for doors ranging from 1-3/8″ to 1-3/4″ thick, making it versatile for various installations. With a crossbore size of 2-1/8″ and two 5/16″ post holes, the lock is easy to install, while the reversible handing allows for flexibility in door orientation. The Rhodes lever design, coupled with a spacious 4-9/16″ lever and 3-7/16″ rose, ensures a comfortable grip and modern appearance. Constructed from steel and zinc dichromated materials, this lockset is built to last. It comes with a 10-year limited warranty, showcasing Schlage’s commitment to quality. Additionally, it’s UL Listed for a 3-hour fire door, providing peace of mind in safety compliance. Upgrade your commercial entryway with the Schlage Commercial ALX53BRHO613 for a blend of style and security.
ALX Series Grade 2 Entry Rhodes Lever Lock with Small Format IC Prep Less Core, 47267042 2-3/4″ Deadlatch, and 47267101 ANSI Strike Oil Rubbed Bronze Finish
- Entry – Turn/Push Button Locks Outside Lever Until Unlocked with Key or Rotating Inside Turn
- ANSI/BHMA Certified A156.2
- 1-3/8″ to 1-3/4″ Door Range
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F109 – Entry/Office
Ansi Function : Entry/Office
Backset: 2-3/4″ Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8″ Bore with Two 5/16″ Post Holes
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: Rhodes Lever
Dimension: 4-9/16″ Lever with 2-15/16″ Projection and 3-7/16″ Rose
Door Range: 1-3/8″ to 1-3/4″
Door Thickness: 1-3/8 In. – 1-3/4 In.
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish : Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 53-Entrance Lock
Function Family: Entrance
Grade: Grade 2
Hand: Non-handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 7/8 In.
Latch Faceplate Dimension: 1-1/8″ x 2-1/4″
Latch Number: 47267042
Latch Type: Deadlatch
Lever Knob: Lever
Lever Knob Design: RHO – Rhodes Lever
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Rhodes
Leverknob Design: RHO – Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Entrance Lock
Manufacturer Function : Turn/push-button locking; pushing and turning button locks outside lever, requiring use of key until button is manually unlocked. Push-button locking; pushing button locks outside lever until unlocked by key or by turning inside lever. Inside lever is always free for immediate egress.
Manufacturer Warranty: 10 Year Limited Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
No Of Inners: 1
Num Pins: 6 to 7
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75″
Pack Length: 9.5″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25″
Pbs Options: 4540301
Pins: 6 to 7
Product Height: 4.5″
Product Length: 9.25″
Product Width: 8.13″
Projection: 2-15/16 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16″ Rose Diameter
Rose Escutcheon Dimensions: Rhodes
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 47267042
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike: ANSI Strike
Strike Dimension: 4-7/8″ with 1-1/4″ Lip
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8 In.
Strike Number: 47267101
Strike Type: ANSI Strike
Strike Width: 1-1/4 In.
Structure Cylinder: B
Structure Function: 53
Structure Latch: D
Structure Latch Number: 47267042
Structure Outside Finish: 613
Structure Outside Trim: RHO
Structure Series: ALX
Structure Strike Number: 47267101
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
