Description

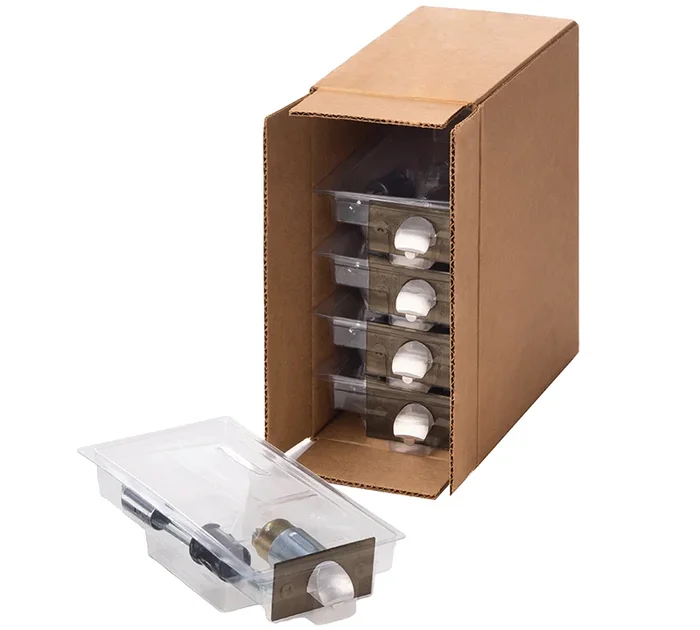

Schlage ALX FK 40 643e 234 ALX Series Privacy Kit, 2-3/4″ Backset, Aged Bronze Finish
Schlage Commercial ALXFK40643E234 ALX Series Privacy Function Kit offers a robust and secure solution for commercial environments that require privacy. This mechanical lockset features a 2-3/4″ backset latch, making it suitable for doors ranging from 1-3/8″ to 1-3/4″ thick. Finished in an attractive Aged Bronze, it blends seamlessly with various architectural styles while ensuring durability. Designed with versatility in mind, the reversible handing allows for easy installation on either left or right-handed doors. The latch faceplate dimensions of 1-1/8″ x 2-1/4″ enhance the lock’s reliability while providing a secure fit. Constructed from steel and zinc dichromated materials, this lockset is built to withstand the rigors of daily use. The ALXFK40643E234 is UL Listed for 3-Hour Fire Doors, ensuring compliance with safety standards. Backed by a 10-Year Limited Warranty, it reflects Schlage’s commitment to quality and reliability. This lockset is perfect for office spaces, conference rooms, or any area where privacy is paramount. With easy UPS shipping, upgrading your door hardware has never been more straightforward. Choose the Schlage Commercial ALX Series Privacy Function Kit for a blend of style, function, and peace of mind.
ALX Series Privacy Function Kit with 2-3/4″ Backset Latch Aged Bronze Finish
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ALX FK 40 643E 234, ALXFK40643E234
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F76B – Privacy
Backset: 2-3/4″ Backset
Base Series: ALX Series
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Door Range: 1-3/8″ to 1-3/4″
Door Thickness: 1-3/8″ – 1-3/4″
Finish: Aged Bronze
Finish Code: 643E
Finish Color: Aged Bronze, Venetian Bronze
Finish : Aged Bronze
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
For Use With: Schlage ALX Series Levers
Function: 40-Bath Bedroom Privacy Lock
Function Family: Privacy
Grade: Grade 2
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Faceplate Dimension: 1-1/8″ x 2-1/4″
Latch Number: 47267038
Latch Type: Spring Latch (Unguarded)
Limited Warranty: 10 Years
Manufacturer Function: Bath/Bedroom Privacy Lock
Manufacturer Warranty: 10 Year Limited Warranty
Material: Steel, Zinc Dichromated
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Qty: 1
Series: ALX Series
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 47267038
Std Latch Type: Spring Latch (Unguarded)
Subcategory: Commercial Parts
Subtype: Lock Parts
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Resources
- ALX Configure Chart
- ALX Cylinders and Keyways Reference Guide
- ALX Key Systems, Cylinders and Keys Catalog
- ALX Series Cut Sheet
- ALX Series Lever Locks Cut Sheet
- ALX Series Product Catalog
- ALX Series Service Manual
- Schlage ALX Series Installation Instructions
- Schlage ALX Series Sell Sheet
- Von Duprin Finishes Chart
