Description

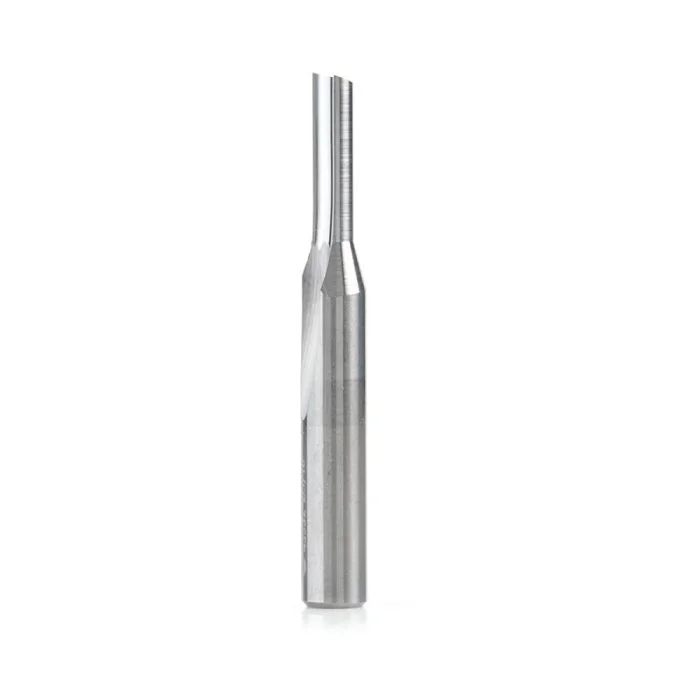

Combining “mirror finished” fluting which insures the best of cutting edges possible in a solid carbide tool, along with a strong, straight-fluted design, these aggressive ‘O’ flute tools will give longer tool life.
More Information
| Manufacturer |
Amana Tool Corp. |
| Condition |
New |
| UPC |
00738685435328 |
| Application |
For Cutting Aluminum, Fomex with Aluminum Face, Natural Wood |
| Flutes |
1 |
| Material |
Solid Carbide |
| Type |
Router Bit |
| Diameter (D) |
3/16″ |
| Cutting Height (B) |
5/8″ |
| Shank Diameter (d) |
1/4″ |
| Overall Length (L) |
2″ |
| Flute Type |
O Flute |
| Grind |
Straight |
| Aluminum (Feed Rate IPM* / Chip Load Per Tooth) |
40″ – 90″ / 0.002″ – 0.005″ |
| Natural Wood (Feed Rate IPM* / Chip Load Per Tooth) |
160″ – 200″ / 0.009″ – 0.011″ |
| CNC Operating Spindle Speed (RPM) |
18,000 RPM |
