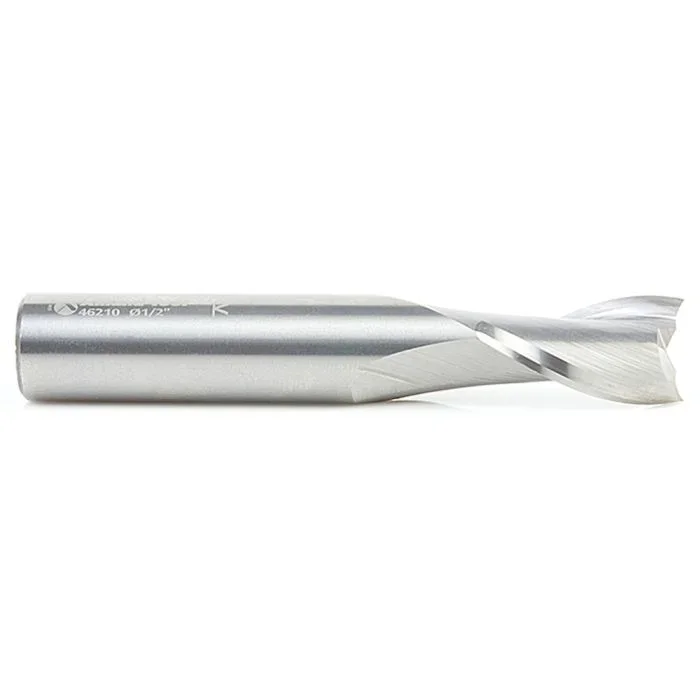

Description
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.
The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising.
Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials.
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 00738685446218 |
| Application | For Production Settings and Excellent for Creating Grooves and Dado Cuts in Particleboard, Plywood and Laminate |
| Flutes | 2 |
| Suitable for Use With | Primarily Used on CNC Machines and Other Automatic Routers, Handheld and Table-mounted Portable Routers |
| Type | Router Bit |
|---|---|
| Direction | Up-Cut |
| Diameter (D) | 1/2″ |
| Cutting Height (B) | 7/8″ |
| Shank (d) | 1/2″ |
| Overall Length (L) | 3″ |
| Feed Rate IPM / Chip Load Per Tooth / Ramp Down (Wood/Plywood) | 200″ / .0057″ / 100″ |
| Feed Rate IPM / Chip Load Per Tooth / Ramp Down (MDF/Laminate) | 350″ / .0096″ / 175″ |
| CNC Operating Spindle Speed | 18,000 RPM |
