Description

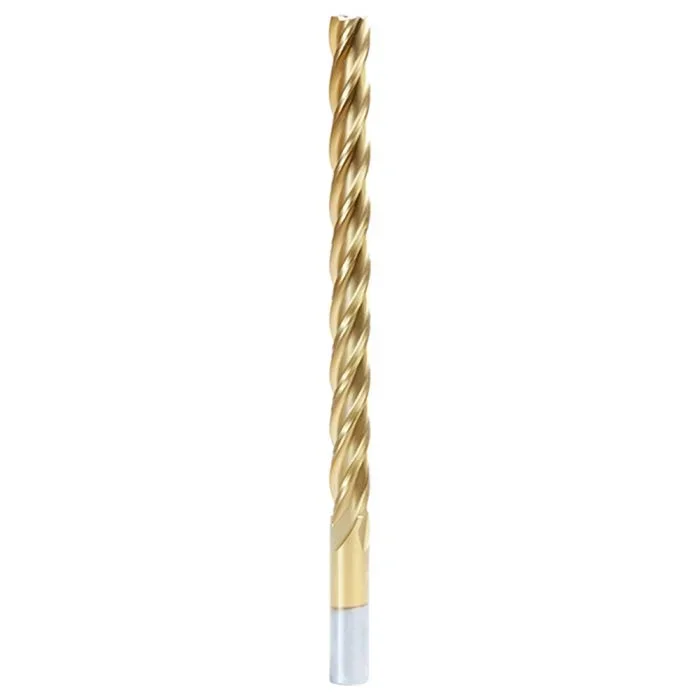

CNC foam tools let you achieve depth and precision for thick foam carving applications. Ensure your foam projects are milled with accuracy and high detail, deep cuts in thick materials in fewer passes. For thick material up-cut chip removal.
*Expanded polypropylene (EPP) is a foam form of polypropylene.
**Ethafoam Polyethylene and Polylam are durable flexible closed-cell foams with excellent memory.
Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| Features |
|
| Flutes | 4 |
| Material | High Speed Steel |
| Type | Router Bit |
|---|---|
| Direction | Up-Cut |
| Diameter (D) | 1/2″ |
| Cutting Height (B) | 6″ |
| Shank Diameter (d) | 1/2″ |
| Overall Length (L) | 8″ |
| Flute Type | Spiral |
| Maximum Speed (RPM) | 6,000 RPM |
| End Mill Type | Extended Reach |
| End Cut Type | Square End |
| Coating | Titanium Nitride (TiN) |
| Suitable for Use with | CNC Routers and CNC Router Systems |
| Application | Acrylonitrile-Butadiene-Styrene (ABS), Aluminum Alloys, Crosslinked Polyethylene Foam (XLPE), Ethafoam**, Ethylene-vinyl Acetate Foam (EVA), Expanded Polypropylene (EPP)*, Expanded Polystyrene (EPS), Extruded Polystyrene Foam (XPS), Flexible Polyurethane Foam (FPF), Foam, Fomex, Polycarbonate (Lexan), Palfoam, Plastics, Polyethylene Foam**, Polylam**, Polyurethane Foam, Wood |
| Feed Rate / Chip Load Per Tooth (Foam) | 120″ – 170″ / 0.005″ – 0.007″ |
| Feed Rate / Chip Load Per Tooth (Aluminum Alloys, Plastics, Wood) | 50″ / 0.002″ |
