Description
NGP 2248A 38 National Guard Products Weatherstrip
FINGER GUARD 38 INCHES CLEAR ALUMINUM

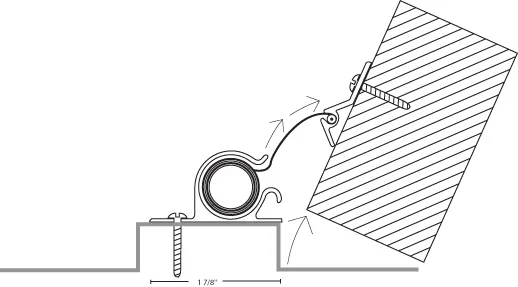

- Designed to help prevent injury to fingers accidentally placed in the hinge area of a door
- Features an internal spring mechanism that maintains constant tension against the polyethylene fabric which helps prevent fingers from entering the dangerous area behind the edge of the door
- Ideal for senior & childcare facilities
- Anodized aluminum housing
- Durable “endless cycle” spring mechanism
- Fire resistant woven polyethylene fabric
- 82″ for 7′ door opening
- 38″ dutch door size
- Custom lengths 12″ up to 86″ available. Order 2″ less than opening height to allow for the stop on the door frame head and door bottom undercut
- Not field sizable
- Mounts on push side of door
- Suitable for doors swinging up to 180 degrees
- #6 x 1/2″ Tek self-drilling screws furnished
- 38″ standard length
- Fire rated up to 3 hours metal doors, 1 hour wood doors
- Aluminum clear anodized w/ white polyethylene
- Available in 38″, 76″, 82″ and 86″ standard lengths
Attributes
Application: Mounts on push side of door
Commercial Residential: Commercial
Fasteners: #6 x 1/2″ Tek self-drilling screws furnished
Finish : Satin Aluminum Clear Anodized
Finish Family: Matte Silver
Fire Rated: Fire rated up to 3 hours metal doors, 1 hour wood doors
Installation: Commercial
Length: 38″ standard length
Pack Qty: 1
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 1 hour.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 1 hour.
Subtype: Weatherstrip
Type: Hinges and Pivots
Unit of Measure: Each
