Description
NGP 680A 36 National Guard Products Weatherstrip
AUTOMATIC DOOR BOTTOM 3 FOOT ALUMINUM
- Aluminum alloy 6063, T5 temper
- Synthetic polymer: Polyamide
- Excellent abrasion resistance, flexibility and memory
- Moisture resistant
- Retains insecticides well
- Temperature range -70°F to 425°F
- REACH and RoHS compliant
- Not effective against water penetration
- Mounts on push side of door
- Use with a threshold for maximum sealing capability
- Nylon brush recommended for carpet applications where no threshold is provided
- Specify exact net length required to avoid field sizing
- 36″ and longer may be cut up to 4″ in the field, under 36″ should not be cut in the field, order net length
- Minimum length 11″, maximum length 60″
- End caps furnished standard
- For half mortise applications specify HM in item number prior to finish (ie: 420NHMDKB)

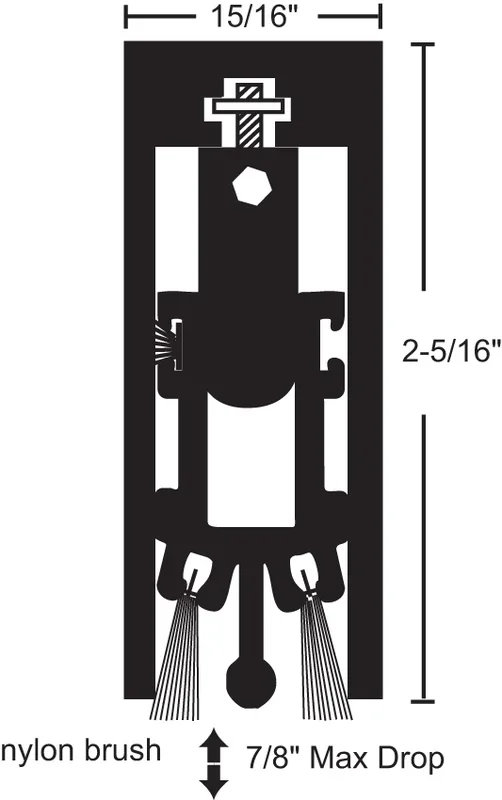

- 7/8″ max drop
- Nylon brush is gray
- Anodized aluminum
- Nylon brush is black
Attributes
Application: Nylon brush recommended for carpet applications where no threshold is provided
Color: Nylon brush is black
Commercial Residential: Commercial
Drop: 7/8″ max drop
Finish: Anodized aluminum
Finish : Satin Aluminum Clear Anodized
Finish Family: Matte Silver
Fire Rated: 3 Hours
Fire Rating: 3 Hours
Installation: Commercial
Length: 36″
Material: Synthetic polymer: Polyamide
Moisture Resistant: YES
Pack Qty: 1
Resistance: Excellent abrasion resistance, flexibility and memory
Ro HS: REACH and RoHS compliant
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Subtype: Weatherstrip
Temperature Range: Temperature range -70°F to 425°F
Type: Hinges and Pivots
Ul Listing: UL10C
Unit of Measure: Each
