Description

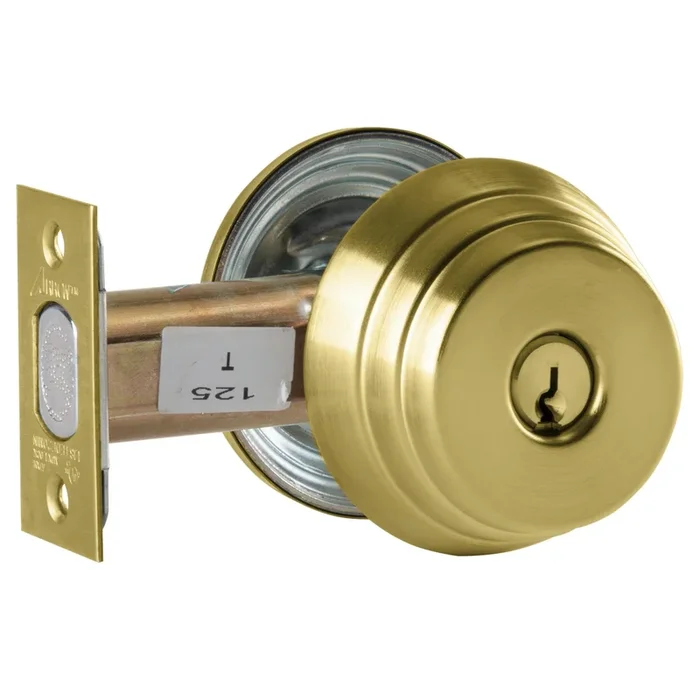

Arrow Lock E62 4 Grade 2 Deadbolt Lock
Arrow E62 Grade 2 Deadbolt delivers exceptional security and durability, making it a top choice for both commercial and residential applications. This double cylinder deadlock features a conventional cylinder design with a satin brass finish, seamlessly blending style with function. Engineered with a tamper-resistant rotating wrench-proof collar and a solid steel deadbolt boasting a hardened steel pin insert, the E62 ensures robust security against unauthorized access. The two-piece housing includes a free-spinning outer ring to prevent wrenching, while concealed mounting screws enhance its tamper-proof capabilities. With a 1″ deadbolt throw and compatibility for doors 1-3/8″ to 1-3/4″ thick, this deadbolt is versatile for various installations. The lock is field-reversible, allowing for easy handing adjustments. Standard strikes are included, and the E62 is supplied with two keys, pinned to 5 for convenience. Additionally, the deadbolt accepts interchangeable cores, including Best™ and Falcon™ types, providing flexibility for keying options. Certified to ANSI A156.5 Grade 2 standards and UL listed for safety, the Arrow E62 Grade 2 Deadbolt is a reliable choice for anyone seeking dependable door security.
Grade 2 Deadbolt
Grade 2 Double Cylinder Deadlock, Conventional Cylinder, Satin Brass Finish, Field Reversible
Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
Arrow E Series deadlocks are unsurpassed for value, quality and durability.
Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
Housing:Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.
Thru-bolting:supplied with two 1/4″ (6.35 mm) steel thru-bolts.
Deadbolt:1″ (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.
Backset:2-3/8″ (60.32 mm), 2-3/4″ (69.85 mm).
Deadbolt fronts:
- 2-1/4″ (57.15 mm) x 1″ (25.40 mm) standard for 2-3/8″ (60.32 mm) backset,
- 2-1/4″ (57.15 mm) x 1-1/8″ (28.57 mm) standard for 2-3/4″ (69.85 mm) backset. Drive-in deadbolts are available.
Doors:1-3/8″ (34.925 mm) to 1-3/4″ (44.45 mm) thick standard.
Strikes:Supplied standard with #395 strike pack (metal and wood).
Handing:All functions are reversible.
Cylinder, Standard:Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41/42 is available 5 pin, Arrow AR and Schlage C only. Supplied with two keys. Available in Schlage CS keyway and other competitive keyways.**Product will accept other manufacturers’ cylinders but cannot be ordered with the product.
Cylinder Options:Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.
Finish:US3, US4, US5A, US10, US10B, US10BE, US15, US26, US26D, BSP
E41/42 is available in US3, US15 and US26D.
- ANSI A156.5, Auxiliary Locks, Grade 2
- Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device
Attributes
Ansi: A156.5
Bolt Projection: 1″ Deadbolt
Box Depth Fraction: 4
Box Height Fraction: 3
Box Width Fraction: 4
Commercial Residential: Commercial
Cylinder Type: Conventional Cylinder
Cylinders Present: SFIC Prep Less Core
Door Thickness: 1-3/8″ – 1-3/4″
Finish: 606/US4
Finish Family: Matte Brass
Function: 62-Double Cylinder Deadbolt
Grade: Grade 2
Handing: Field Reversible
Installation: Commercial
Keying: Keyed Alike Group of 4
Keys: Cut
Limited Warranty: 1 Year
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Function: E62
Maximum Door Thickness: 1-3/4″
Minimum Door Thickness: 1-3/8″
Of Keys: 2
Pack Height: 3″
Pack Height 2: 5″
Pack Length: 4″
Pack Length 2: 13″
Pack Qty: 1
Pack Volume: 48 in³
Pack Volume 2: 812.5 in³
Pack Width: 4″
Pack Width 2: 12.5″
Pins: 6-pin, Keyed 5
Screws: Combination
Series: Arrow E Series Deadbolts
Ship Weight: 2 lbs.
Std Keyway: Arrow A
Std Latch Backset Dim: 2-3/8″
Std Latch Number: 141
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4″
Std Strike Number: 395 (345 & 346)
Std Strike Type: Flat Strike
Std Strike Width: 1-1/8″
Strike Dimensions: 2-3/4″ x 1-1/8″
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 12
