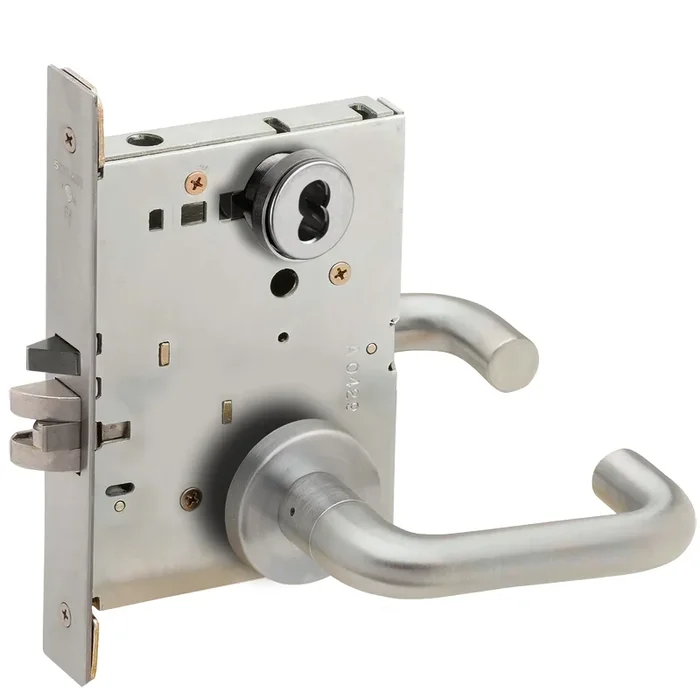

Schlage L9056B 03A 626 Auto Unlock Mortise Lock, Small Format IC, 3 Lever, Satin Chrome Finish
Schlage Commercial L9056B03A626 Automatic Unlocking Entry Mortise Lock integrates functionality and security in a sleek design, making it an ideal choice for office and entry applications. This automatic unlocking lock features a small-format IC less core, ensuring compatibility with various access control systems while streamlining key management. With a backset of 2-3/4″, the lock fits standard door preparations, accommodating a broad range of installation scenarios. The satin chrome finish not only enhances the lock’s aesthetic appeal but also provides durability and resistance to wear, ensuring it maintains its polished look over time. The 2-1/8″ rose, paired with a 4-3/4″ lever and a projection of 2-13/16″, offers a contemporary profile that complements modern architectural designs. Designed with versatility in mind, the L9056B03A626 features reversible handing, allowing for easy installation regardless of door orientation. The ANSI strike enhances security, making this lock a robust choice for any entryway. Whether for new constructions or upgrades, the Schlage Commercial L9056B03A626 Automatic Unlocking Entry Mortise Lock delivers reliable performance and peace of mind, ensuring secure access while enhancing the overall functionality of your building’s entry points.
Automatic Unlocking Entry Mortise Lock with Small Format IC Less Core with 03 Lever and A Rose Satin Chrome Finish
- Commercial Grade 1
- UL Listed for 3 Hour Fide Door
- ANSI/BHMI Certified A156.13-2012
- Lock Body Mortises Inside the Edge of the Door
- Entry/Office with Automatic Unlocking – Latchbolt Retracted by Either Side, Locked by Key or Turn, Unlocked by Key, Turn, or Closing Door, Inside is Always Free for Immediate Egress
Attributes
Ansi: A156.13-2017 Series 1000
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Bolt Projection: 3/4″ Latch
Bolt Protection: 3/4″
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-3/8″
Cylinder Type: SFIC Prep Less Core
Design: NULL
Dimension: 2-1/8″ Rose with 4-3/4″ Lever and 2-13/16″ Projection
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9056-Entrance Office w Auto Unlocking
Function Family: Entrance/Office
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Faceplate Dimension: 1-1/4″ x 8″
Latch Type: Dead Latch (Guarded)
Lever Knob Design: 03 – Lever
Lever Knob Design Family: Straight Return Lever
Leverknob Design: 03 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Face Size: 8″ x 1-1/4″
Manufacturer Function : Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by rotating inside thumbturn. Outside knob/lever unlocked by key outside, thumbturn or closing door. Rotating inside knob/lever simultaneously retracts latchbolt and unlocks outside knob/lever. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Num Pins: 6 to 7
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63″
Pack Height 2: 5.63″
Pack Length: 10.38″
Pack Length 2: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38″
Pack Width 2: 5.38″
Pins: 6 to 7
Pocket Dimensions: 6-5/8″ x 4-1/2″
Projection: 2.813″
Restrictions: None
Rose Escutcheon Design: A – Rose
Rose Escutcheon Dimensions: 2-1/8″
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8″
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16″
Strike: ANSI Strike
Strike Dimension: 4-7/8″ with 1-1/4″ Lip
Strike Height: 4-7/8″
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4″
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
