Description

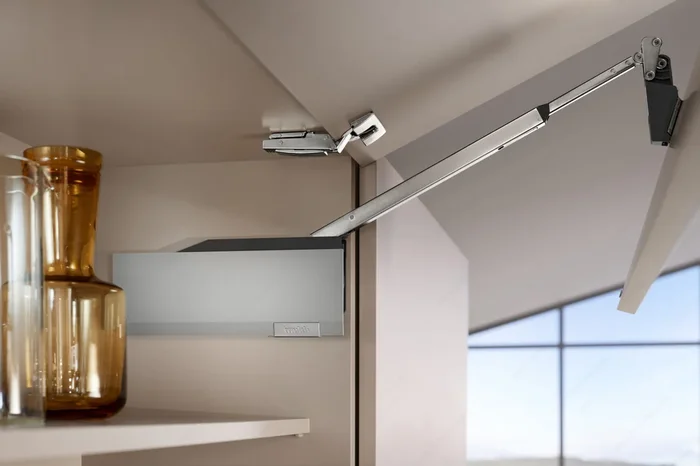

Richelieu WEBKIT1249490 AVENTOS HF Top Set for Frameless Cabinets
Richelieu WEBKIT1249490 AVENTOS HF top set for frameless cabinet offers the perfect blend of functionality and elegance for modern kitchens and living spaces. This bi-fold lift system is specifically designed for taller wall cabinets, accommodating cabinet heights from 480 mm (18-7/8 in) to 1219 mm (48 in) and widths up to 1828 mm (72 in). With an inside depth requirement of at least 264 mm (10-3/8 in), it ensures easy access and efficient use of space. The integrated BLUMOTION feature provides soft and effortless closing, enhancing user experience with light operating forces. The system includes a variable stop and an integrated opening angle stop, allowing for customizable operation. Tool-free assembly simplifies installation, while the symmetrical levers and fixed lift mechanism position ensure stability and reliability. Designed for narrow aluminum-framed doors (20 mm and less), the AVENTOS HF top set comes finished in a sophisticated pale grey, making it a stylish addition to any cabinetry. The 3-dimensional adjustment capability of both doors, along with a center hinge featuring a finger safety feature, guarantees precise alignment and safety. Choose Richelieu’s AVENTOS HF top set to elevate the functionality and aesthetic appeal of your wall cabinets, ensuring every opening is a pleasure.
AVENTOS HF top set for frameless cabinet
The Perfection of Motion for Your Wall Cabinets
With AVENTOS HF top, enjoy a bi-fold lift system designed to meet the needs of modern kitchens and living spaces. Ideal for tall wall cabinets, it allows you to create elegant and functional fronts while ensuring optimal ease of use.
Key Product Features:
– Ideal for taller wall cabinets with bi-fold doors
– Cabinet height 480 mm (18-7/8 in) to 1219 mm (48 in)
– Cabinet width up to 1828 mm (72 in)
– Inside depth of at least 264 mm (10-3/8 in)
– Integrated BLUMOTION for soft and effortless closing
– Light operating forces
– Variable stop
– Integrated opening angle stop
– Fixed position of the lift mechanism and mounting plate for lever
– Symmetrical levers
– Tool-free assembly
– Two lift mechanism fixing methods
– 3-dimensional adjustment of both doors
– Center hinge with finger safety feature
With AVENTOS HF top, every opening becomes a pleasure, and every detail is designed to combine aesthetics with user comfort. Choose quality and innovation for your wall cabinets!
Attributes
Brand: Blum
Door Height: 33 1/8 to 48 in*
Door Length: Max. 72 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Finish: Pale Grey
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Opening Types: Folding Opening
Power Factor: 238 to 1 188
Product #: WEBKIT1249490
Screw/ Nail: Wood Screw (Included)
Resources
- Brochure
- Datasheet
- Installation
- Instructions for BLUMOTION replacement
