Hafele 408.10.455 Pocket Door Ball Bearing Slide System Instructions
Hafele 408.10.455 Ball Bearing Slide, Pocket Door WF/MF System offers a reliable solution for smooth sliding door installations in various applications, including entertainment systems, office furniture, and institutional settings. Designed for doors up to 28 inches in height, this system accommodates a maximum door thickness of 1 1/4 inches, ensuring versatility across multiple projects. With a length of 18 inches and a retraction of 14 3/4 inches, the ball bearing slide facilitates seamless operation. The minimum pocket width varies based on door thickness, ranging from 45 mm for doors between 16-22 mm thick, to 57 mm for those measuring 22-32 mm. The system’s black finish adds a modern touch while blending seamlessly with the interior of cabinets. Customers can choose between a metal follower or supply their own, allowing for customization based on specific project needs. The installation process is straightforward, making it an ideal choice for both professional builders and knowledgeable homeowners. With the Hafele 408.10.455, you can expect durability, smooth operation, and an aesthetically pleasing finish that enhances any space. Perfect for creating functional and stylish environments, this pocket door system meets the demands of today’s design standards.

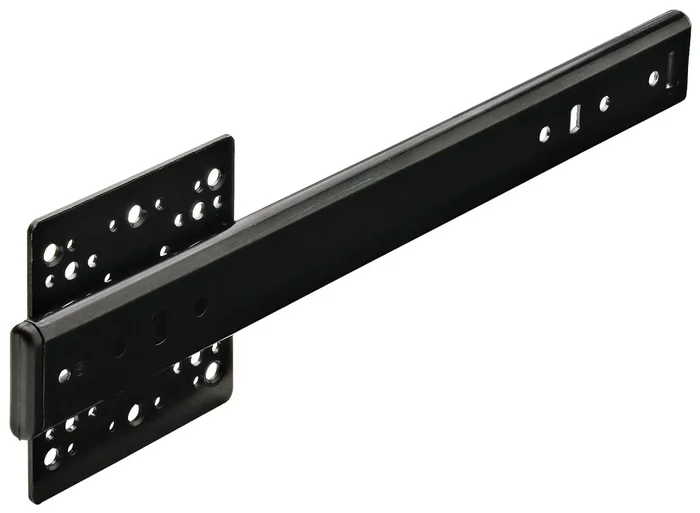

Ball Bearing Slide, Pocket Door WF/MF System
Length: 18″, retraction: 14 3/4″
Minimum pocket width: Door thickness: 16 – 22 mm (5/8″ – 7/8″) = 45 mm (1 3/4″) Door thickness: 22 – 32 mm (7/8″ – 1 1/4″) = 57 mm (2 1/4″)
Recommended for entertainment systems, office furniture systems and institutional furniture, where the wood follower strip is finished to match the inside of the cabinet
Customer selects metal follower or supplies own follower. Metal follower and components are listed below.
Attributes
Area of application: Recommended for entertainment systems, office furniture systems and institutional furniture, where the wood follower strip is finished to match the inside of the cabinet
For door height: ≤813 mm
For door thickness: ≤32 mm
For door thickness max.: 1 1/4″
Installation: Maximum door height: 711 mm (28″) Maximum door thickness: 32 mm (1 1/4″) Door thickness: 16 – 22 mm (5/8″ – 7/8″) = 45 mm (1 3/4″) Door thickness: 22 – 32 mm (7/8″ – 1 1/4″) = 57 mm (2 1/4″)
Length (inch): 18″
Material/finish: Black
Note on door height: max. [WF System] 711 mm (28″), [MF system] 813 mm (32″) mm
Runner length: 454.00 mm
Resources
- Manufacturer information
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.110
