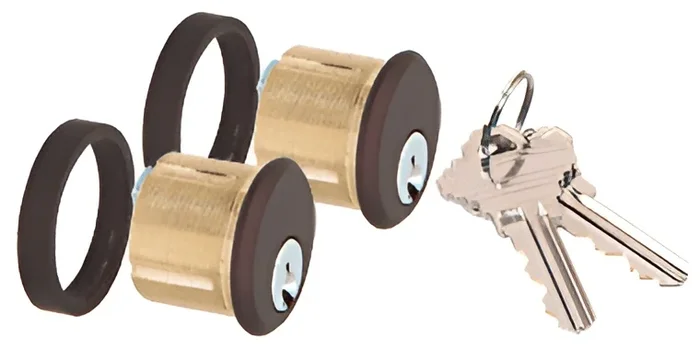

CRL AMR205CCDU Black Bronze Anodized AMR Double Keyed Cylinders
C.R. Laurence AMR205CCDU Black Bronze Anodized AMR Series Double Keyed Cylinders offer a robust locking solution designed for versatility and security. Constructed from high-density cast materials, these cylinders feature a reliable lock mechanism, ensuring durability and peace of mind for various installations. These cylinders are compatible with both 3/8″ (10 mm) and 1/2″ (12 mm) glass, making them an excellent choice for a range of glass applications. The AMR205CCDU comes in a striking Black Bronze Anodized finish, adding a touch of elegance to any setting. With five architectural finishes available, these cylinders can seamlessly blend with your design aesthetic. Ideal for use with C.R. Laurence’s American Style Patch Lock, the double keyed cylinders can be mounted at the top, bottom, or vertical edge of doors, providing flexible installation options. For added security, a bottom patch lock is recommended for double door applications to ensure both doors are properly secured. Each unit comes complete with a template and instructions for easy installation, while optional keepers such as the AMR207 and AMR208 are available separately to cater to specific needs. Elevate your glass door security with the C.R. Laurence AMR205CCDU cylinders, designed for both functionality and style.
Black Bronze Anodized AMR Series Double Keyed Cylinders
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8″ or 1/2″ (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using theAMR206 Sidelite Mount Keeper. A variety of optional keepers, such as AMR207 and AMR208 are available to accommodate most types of installations.
Optional Cylinders include either AMR205CC Double Keyed Cylinders or AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4″ (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4″ (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Diameter: 1-5/32 in. (29 mm)
Finish/ Color:: Black Bronze Anodized
Shipping Limitations: None
Resources
- AMR205 Template for Door Jamb Mounting.dwg
- AMR205 Template for Door Jamb Mounting.pdf
- AMR205 Template.dwg
- AMR205 Template.pdf
