Description

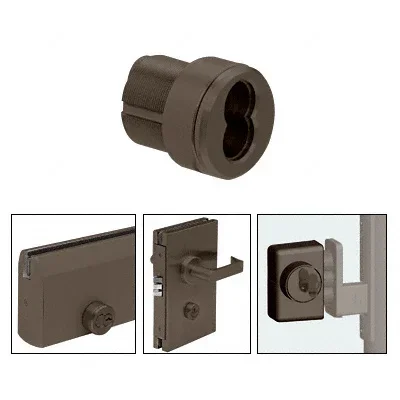

CRL 1CHDU Black Bronze Anodized Mortise Housing for 7-Pin SFIC Cores
C.R. Laurence 1CHDU Black Bronze Anodized Mortise Housing for 7-Pin Small Format Interchangeable Cores (SFIC) is expertly designed to optimize door security systems. This versatile mortise housing is compatible with any 7-pin SFIC type core, allowing for seamless integration into existing setups. With the ability to replace traditional mortise keyed cylinders, this system simplifies the conversion to an interchangeable core mechanism, enhancing both convenience and security. Installation is straightforward; simply remove the existing mortise cylinder, select the appropriate cam, and install the new housing and core. Each housing includes a 1/2″ tall cylinder ring and comes pre-installed with a DRA10CAM, along with additional cams for use with specific center locks. It is important to note that this product is not compatible with larger removable core systems. Constructed from durable brass and finished in an elegant black bronze anodized coating, the 1CHDU housing combines aesthetic appeal with lasting performance. With a diameter of 1-5/32 inches and a length of 1-5/16 inches, this mortise housing fits a variety of applications. For optimal functionality, SFIC cores must be ordered separately, and when used with specific lock types, additional components may be required. Enhance your locking systems with C.R. Laurence’s reliable and stylish mortise housing.
Black Bronze Anodized Mortise Housing for 7-Pin Small Format Interchangeable Cores (SFIC)
- Compatible with Any 7-Pin SFIC Type Core
- Available in Several Architectural Finishes
CRL Mortise Housings for 7-Pin Small Format Interchangeable Cores (SFIC) are used to replace any of our Mortise Keyed Cylinders with an ‘interchangeable core’ system. Easily convert any of our Door Rails with locks, 4″ x 10″ (102 x 254 mm) and 6″ x 10″ (152 x 254 mm) Center Locks, or Panic and Deadbolt Handles to an ‘interchangeable’ core system. Simply remove the existing mortise cylinder, choose the appropriate cam, and install the new Housing and Core. It’s that easy!
ORDERING INFORMATION:
• Each Mortise Housing comes with a 1/2″ (12 mm) tall cylinder ring and one DRA10CAM (installed), one DRACAM, and one cam for easy conversion when used with our 6″ x 10″ (152 x 254 mm) Center Locks.
• Not compatible with larger ‘removable’ core systems.
• When Mortise Housings are used with CRL Low Profile Wedge-Lock® Door Rails an additional DRA256 Series Cylinder Ring must be ordered separately.
• SFIC Cores must be ordered separately.
Product Warning:
When used with AMR205 patch lock, additional DRA256 cylinder ring must be used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Diameter: 1-5/32 in. (29.4 mm)
Finish/ Color:: Black Bronze Anodized
Length: 1-5/16 in. (33.3 mm)
Material: Brass
Shipping Limitations: None
Type: Mortise
