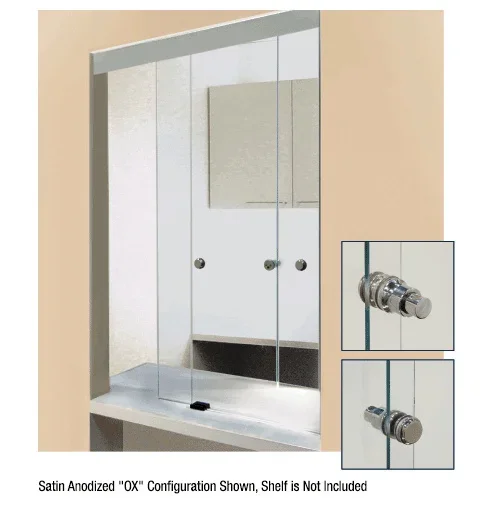

CRL SH36480XBRZ Black Bronze Anodized Sharyn 36″x48″ OX Frameless Pass-Thru
C.R. Laurence SH36480XBRZ Black Bronze Anodized Sharyn 36″ x 48″ OX Frameless Pass-Thru Window redefines modern architectural aesthetics with its sleek, frameless design, setting a new standard for pass-thru windows. This innovative window features no-hole top hung clamp-on roller assemblies, allowing for height adjustments of approximately 3/16″ (5 mm) to accommodate varying field conditions. The double track header ingeniously conceals roller assemblies within side walls, enhancing its clean appearance without the need for unsightly valances. Designed for functionality and elegance, the Sharyn model is available in Brite Anodized, Satin Anodized, and Dark Bronze finishes, making it a versatile choice for any interior setting. Measuring 36″ wide by 48″ high, it features an OX configuration with a fixed panel on one side and a sliding panel on the other, perfect for clerk-side applications. The stock model comes equipped with 1/4″ (6 mm) clear tempered glass, ensuring durability and clarity. Included with the pass-thru window are essential components like a double track header, roller assemblies, and a push button lock for security. Additionally, rubber bumpers are included to ensure a soft closing action. This combination of style and practicality makes the C.R. Laurence Sharyn Pass-Thru Window an exceptional choice for modern interiors.
Black Bronze Anodized Sharyn 36″ x 48″ OX Frameless Pass-Thru
- Modern “Frameless” Appearance as Opposed to Traditional Framed Pass-Thru Windows
- No-Hole Top Hung Clamp-On Roller Assemblies Allow Height Adjustability
- Double Track Header has Side Walls that Hide Roller Assemblies
- Optional Fixed Lite Header Insert
- Available in Brite Anodized, Satin Anodized, and Dark Bronze Finishes
- Sized to Fit Opening 36″ W x 48″ H
- OX Clerkside (O= Fixed Panel, X=Sliding Panel)
- View: Clerk Side View
TheCRL Sharyn Frameless Pass-Thru Windowwill bring a modern appearance to what has been a traditional looking world of pass-thru windows. The “No Hole” Clamp-On Assemblies match the Header finishes, and allow height adjustment of approximately 3/16″ (5 mm) that may be required due to field conditions. The Double Track Header has side walls that discreetly hide the Roller Assemblies, thus eliminating the need for unsightly valance covers. The Sharyn “Frameless” Pass-Thru Window is offered in three different two panel configurations of sliding and fixed panels to accommodate most any service condition. An optional Fixed Lite Header Insert is for the fixed side panel.A Thru-Glass Mounted Keyed Lock or Push Button Lock can be ordered separately for Custom Windows. The Push Button Lock is included on the stock window. Rubber Bumpers are included in each kit to assure soft closing of the window. 36″ x 48″ (.914m x 1.22 m) 1/4″ (6 mm) pre-glazed stock models are available when a quick solution is required to complete your job, or “Quick-Fab” Custom Windows are also available. Custom windows are available with 1/4″ (6 mm) clear tempered glass, or unglazed.
STOCK WINDOWS INCLUDE: One Double Track Header, 1/4″ (6 mm) Clear Tempered Glass, Two Top Hung Roller Assemblies per Sliding Panel, Three Bottom Guides, One Push Button Lock with Two Strikes, and Eight Bumpers.
NOTE: Fixed Lite Models Include One Fixed Lite Header Insert and Bottom Channel.
Header cut at 35-15/16″. Height at 48″. Bottom guide included.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Configuration: OX
Deal Tray Included: No
Finish/ Color:: Black Bronze Anodized
Frame Depth: 2 in. (50.8 mm)
Glazing Type: 1/4 in. (6 mm) Clear Tempered Glass
Handle Type: Self Latching
Height: 48 in. (1219.2 mm)
Latch Type: LK49
Material: Aluminum
Shipping Limitations: None
Usage: Interior
Width: 36 in. (914.4 mm)
Resources
- Sharyn 3-Part Spec
- Sharyn Model Frameless Glass Pass-Thru Window Installation Instructions
- Sharyn Pass-Thru Windows – SH3648 3 Part-Spec
- Sharyn X0 0X CAD Drawings.pdf
