Description

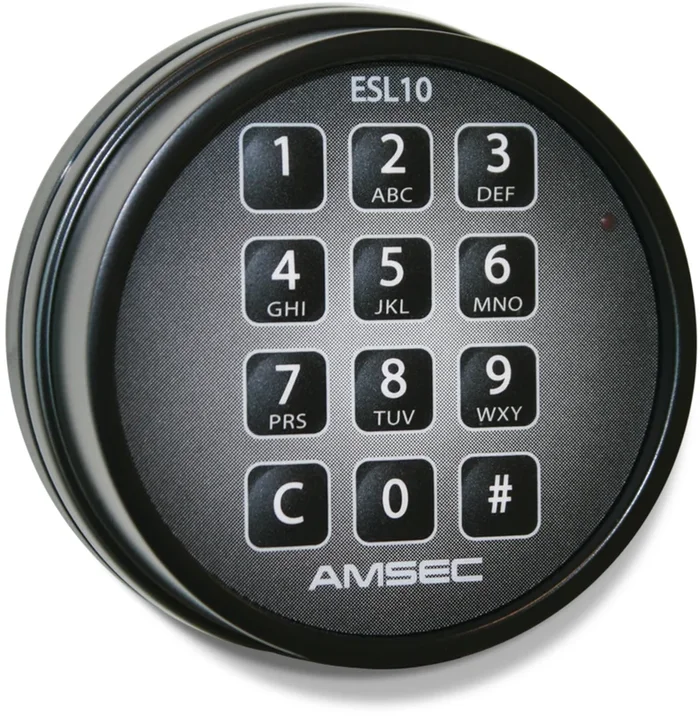

Amsec 0616252 Black Nickel ESL10 (UL Type 1) Retro-Fit Kit
Amsec 0616252 Black Nickel ESL10 (UL Type 1) Retro-Fit Kit offers a cutting-edge solution for enhancing security in both residential and commercial settings. This electronic keypad lock is designed to replace most mechanical combination locks, making installation straightforward and user-friendly. With a sleek black nickel finish, it features a splash-proof keypad that provides audible feedback with every keystroke, ensuring maximum user confidence. Key benefits include a factory reset combination that allows users to regain access without costly service calls, and a patented dead-latched design that incorporates an internal relock device for added security. The ESL10 automatically locks when the bolt work is thrown, preventing safes from being inadvertently left in a day lock position. For convenience, an optional internal battery pack helps extend operation between battery changes. This lock is UL Listed and Type 1 certified, ensuring it meets stringent safety standards. The ESL10 is powered by a 9V battery and features a standard bolt type for reliable performance. Whether you’re upgrading your home safe or fortifying an office, the Amsec ESL10 combines functionality with durability, making it an excellent choice for security-conscious individuals.
Black Nickel ESL10 (UL Type 1) Retro-Fit Kit
Notice: The info below is not item specific.
Amsec has been a pioneer in the electronic lock market. The ESLXL Series locks offer unrivaled value in electronic safe access. The ESL10XL and ESL20XL locks have the best blend of features and function in Electronic Safe Locks. The ESLXL Series offer an attractive metal die-cast keypad housing with an alpha-numeric slanted keypad. The ESL10XL is a basic keypad lock for home and office applications. The ESL20XL offers advanced features necessary for commercial applications. All the ESL20XL features are programmed from the keypad. The Expansion Modules provide convenient screw terminal and slip spade connections for field wiring by the installer. A/C Power can be connected to the ESL10XL and ESL20XL lock (with the ESLAC kit) or an Expansion Module (with the ESLTFMR kit). Wiring, conduit and attachment hardware is provided with all optional kits.
ESL10XL Features:
- Replaces most mechanical combination locks. Easy installation and operation.
- Factory Reset Combination for solving lost combinations without requiring expensive service calls.
- Electronics are encapsulated within the lock and are sealed to prevent possible moisture related failures.
- Cable fits through a 1/2″ spindle hole without cutting and re-crimping connector.
- Audible beep and flash from every keystroke gives maximum feedback to the user.
- 15 minute Penalty Lockout after four incorrect entries protects against manipulation attempts.
- New patented dead-latched lock design with an internal relock device for maximum security.
- Lock “auto-locks” when bolt work is thrown to prevent safes from being left in a day lock position.
- Slam Bolt version for locker applications.
- Optional internal battery pack extends operation between battery changes.
ESL20XL Features:
- Time Delay Mode: Delays can be set from 1 to 99 minutes.
- Multiple User Mode: When enabled, one Master code and eight user codes are available with full supervisory control and code management.
- Dual Control Mode: The lock can be programmed to require two combinations to open for added security.
- Armored Car Override: When enabled, allows an armored car service to bypass Time Delay.
- External A/C Power: Provides power for unlimited use with battery power as backup.
- Control Port: Turn the ESL20XL on/off with an Access Manager, Alarm System or other device.
Optional Expansion Modules:
- Provides these additional capabilities on the ESL20XL:
- Duress (Silent Signal) Alarm Output. Provides relay output for alarm system connection.
- External connection for A/C power transformer on ESL20XL and ESL10XL.
- External connection for control port.
- Provides for connection of one or two ESL20XL locks.
Attributes
Alternate Codes: 0615867, 0615867 OR 0616252, 0615867OR0616252, 0616252, AMS0615867 OR 0616252
Auto Lock: Yes
Battery Type: 9V Battery
Bolt Type: Standard Bolt
Category: Safe Locks, Accessories & Parts, Safes
Certifications: UL Listed, UL Type 1
Finish Color: Black Nickel
Keypad Type: Splash Proof Keypad
Lock Type: Electric Keypad Lock
Manufacturer: Amsec
Power Source: Battery
Series: ESL10
Time Delay: No
Users: 1 User Code
