Description
CRL PA100H3RKSB Blumcraft Satin Brass Right Hand Reverse Rail Panic Handle with Keyed Access
C.R. Laurence PA100H3RKSB Blumcraft Satin Brass Right Hand Reverse Rail Mount Keyed Access ‘H’ Exterior, Top Securing Panic Handle combines elegance and functionality for ‘all-glass’ door applications. Engineered to meet UL, ULC, and ANSI/BHMA certification standards, this panic handle features a sleek tubular design that enhances the contemporary aesthetic of any space. Designed for use with 1/2″ (12 mm) or 3/4″ (19 mm) tempered glass doors, it is available in a range of finishes including polished and brushed stainless, satin and polished brass, and oil-rubbed bronze. The innovative mechanism concealed within the vertical tubing allows for easy operation; simply push the interior actuation bar to retract the latch bolt. For added security, an optional exterior keyed access device can be installed, along with a dogging feature that keeps the doors unlocked during business hours.This handle not only complies with Americans With Disabilities Act (A.D.A.) codes but also offers a slender 1-1/4″ (32 mm) tube that minimizes obstruction on the lower half of the door. Custom finishes and sizes are available upon request, shipping within one to two weeks. Elevate your glass entrance systems with the durability and style of the PA100H3RKSB Panic Handle, where form meets function seamlessly.

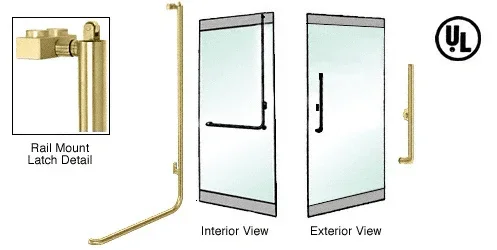

Blumcraft Satin Brass Right Hand Reverse Rail Mount Keyed Access ‘H’ Exterior, Top Securing Panic Handle
- UL, ULC, and ANSI/BHMA Certified
- Elegant Tubular Design
- Wide Selection of Exterior Fixed Handles For 1/2″ (12 mm) or 3/4″ (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available By Special Order
- Custom Sizes Ship Within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your ‘all-glass’ door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The operating mechanism concealed within the vertical tubing of our Panic Handles retracts the latch bolt when the interior actuation bar is pushed. An optional exterior Keyed Access Device can be installed to allow entry, and a special dogging feature allows the doors to remain unlocked during business hours. Electronic Strikes are also available, providing a variety of secured entry options.
CRL manufactures a complete line of Panic Handles designed with the ‘all-glass’ door in mind. These elegant tubular devices give you maximum viewing area and a contemporary look when used on 1/2″ or 3/4″ (12 or 19 mm) tempered glass doors.
The most popular of these Panics is our PA100 Series. They provide a solution to the strict Americans With Disabilities Act (A.D.A.) Codes that confront every manufacturer and installer of ‘all-glass’ doors.
The interior portion of the device is a slender 1-1/4″ (32 mm) tube stretching across the door and then gently turning upwards to the top of the door, eliminating any interference at the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands.
All PA100 Series Panic Handles come with a ‘dogging’ feature that allows you to lock the device in the open position by simply sliding a lever, giving free access during business hours. They also can be used in conjunction with an Electric Strike, allowing for remote keyless entry. For your convenience, Custom Headers are available with all strike hardware installed.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found here.” target=”_blank”>https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/”>here.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Application: DRS Rail Mount
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Exterior Access: Yes
Finish/ Color:: Satin Brass
Glazing Thickness: 1/2 in. (13 mm)
Handing: Right Hand Reverse
Keying: Cylinder Outside Only
Latching: Top
Material: Brass (385)
Shipping Limitations: None
Resources
- Blumcraft Access Control Handles Specifications
- Blumcraft Access Control Handles Specifications.doc
- Blumcraft Panic Handles System CAD Drawings.dwg
- Blumcraft Panic Handles System CAD Drawings.pdf
- Blumcraft Security Latch Product Information
- Brass Finish Disclaimer
- Handle Warranty
- Installation Instructions AVDB3118 PA100H Panic Handle.pdf
- LEED Statement
- PA100H Series Panic Handle Installation Instructions
- Panic Handles – Hollow Metal Doors Installation Instructions
- Panic Hardware Certificate of Compliance
- Panic and Deadbolt Handle – 100 and 110 Series Quote Request Form
- Quote and Ordering Form panic.pdf
- Specifications specdrs.doc
