Description

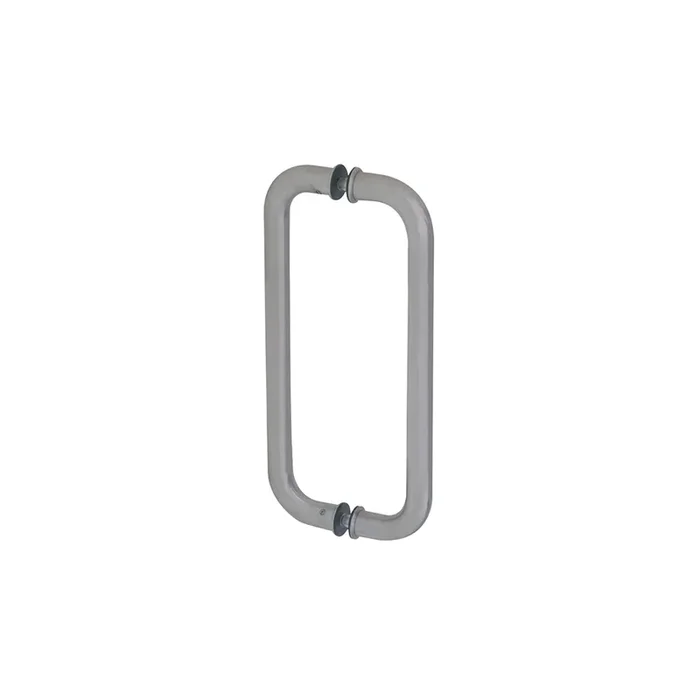

CRL CM10X10BS Brushed Stainless 10″ Back-to-Back Glass Pull Handle
C.R. Laurence CM10X10BS Brushed Stainless 10″ Back-to-Back Glass Mounted Standard Pull Handle seamlessly blends functionality and style, making it an ideal addition for both commercial and residential spaces. Crafted from high-quality brushed stainless steel, this pull handle is designed to accommodate glass thicknesses ranging from 3/8″ to 3/4″ (10 to 19 mm), ensuring versatility in various applications.The handle features a sleek 1″ (25 mm) diameter tubing that projects 3″ (76 mm) from the face of the glass, allowing for easy grip and access. It comes complete with matching finish metal washers and through-bolts for straightforward installation, ensuring a polished look that enhances any glass door or entryway. With a mounting center-to-center distance of 10″ (254 mm) and requiring two 5/8″ (16 mm) diameter holes in the glass, the CM10X10BS offers a robust and secure solution for glass-mounted applications. Available in multiple architectural finishes, this pull handle not only meets aesthetic demands but also guarantees durability.C.R. Laurence recommends periodic maintenance to preserve the factory finish, ensuring that this elegant hardware remains a centerpiece of your design for years to come.
Brushed Stainless 10″ Back-to-Back Glass Mounted Standard Pull Handle
- Stocked in Up to Five Architectural Finishes
- For Use with 3/8″ to 3/4″ (10 to 19 mm) Glass
- Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.
SPECIFICATIONS:
For Use With: 3/8″ to 3/4″ (10 to 19 mm) Glass
Construction:
1″ (25 mm) Diameter Stainless Steel or Brass
Tubing. *1-1/4″ (32 mm) Diameter Stainless
Steel (Cat. No. CD24X24BS125 Model only).
Projection: 3″ (76 mm) from Face of Glass to Outside of Handle
Glass Fabrication Required:
Two 5/8″ (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4″ (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Diameter: 1 in. (25.4 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 10 in. (254 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
Resources
- CRL Stainless Steel Disclaimer
- Technical Specifications PH-CM10X10.pdf
