Description

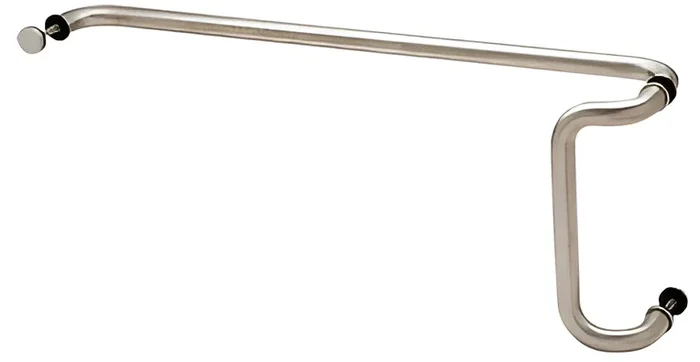

CRL CD12X28BS Brushed Stainless 12″x28″ Back-to-Back Offset Push-Pull Handle Set
C.R. Laurence CD12X28BS Brushed Stainless 12″ x 28″ Back-to-Back Offset Combination Push and Pull Handle Set offers a sleek and functional solution for modern glass doors. Designed for use with 3/8″ to 3/4″ (10 to 19 mm) thick monolithic tempered glass, this handle set features robust 1″ (25 mm) diameter stainless steel tubing, ensuring durability and resilience. The CD12X28BS is not only practical but also aesthetically appealing, available in a variety of attractive architectural finishes that suit various design themes. Its offset design provides an ergonomic grip, with pull mounting at a convenient 12″ (305 mm) center-to-center distance and push mounting at 28″ (711 mm) center-to-center.Installation is straightforward, requiring three 5/8″ (16 mm) diameter holes for glass fabrication, making it an ideal choice for professional glaziers and builders. Included in the package are through-bolts for glass mounting, along with matching finish metal washers and rubber gaskets for a clean look. It is important to note that while stainless steel is highly resistant to corrosion, periodic maintenance is recommended to preserve its factory finish. Enhance your glass installations with the sophisticated style and reliability of the C.R. Laurence CD12X28BS handle set.
Brushed Stainless 12″ x 28″ Back-to-Back Offset Combination Push and Pull Handle Set
- For Use with 3/8″ to 3/4″ (10 to 19 mm) Glass
- 1″ (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Many Beautiful Architectural Finishes
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8″ to 3/4″ (10 to 19 mm) Glass
Construction: 1″ (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8″ (16 mm) Diameter Holes,
10″ (254 mm) Center-to-Center
12″ (305 mm) Center-to-Center
28″ (711 mm) Center-to-Center
33″ (838 mm) Center-to-Center
Offset: 3″ (76 mm) Center-to-Center
Optional 1-1/4″ (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4″ (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 12 in. (305 mm)
Push Mounting Center To Center: 28 in. (711 mm)
Shipping Limitations: None
Resources
- CRL Stainless Steel Disclaimer
- Technical Specifications
