Description

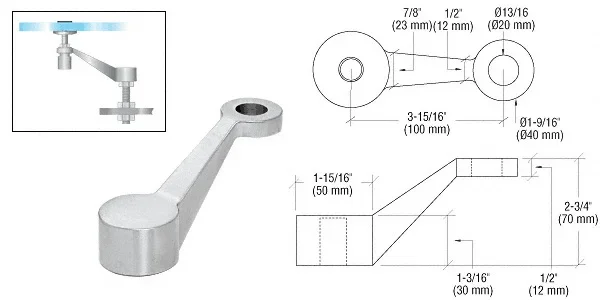

CRL PMH1BS Brushed Stainless Heavy-Duty Single Arm Column Mount Spider Fitting
C.R. Laurence PMH1BS Brushed Stainless Heavy Duty 1 Arm Column Mount Spider Fitting is designed for seamless integration with glass panels up to 1-1/16 inches (27 mm) thick. This robust single-arm fitting allows for secure attachment to a structural end post, making it ideal for a variety of architectural applications. It comes complete with a 16 x 99.5 mm (3-7/8″) stainless steel threaded stud and three corresponding nuts with washers, ensuring a reliable installation. Constructed from high-quality stainless steel (Alloy 316), this fitting boasts a brushed finish that enhances both durability and aesthetic appeal. For optimal performance, it is recommended to use monolithic tempered glass, with glass attachments sold separately. The PMH1BS is designed for heavy load capacity, providing peace of mind for your structural needs. For additional versatility, consider pairing this fitting with companion options such as the PMH2BS or PMH2PS. Please note that while stainless steel is resistant to corrosion, it requires periodic maintenance to preserve its finish. As always, verify shipping details with C.R. Laurence Customer Service to ensure a smooth ordering process. This fitting not only meets structural demands but also adds a sleek touch to any glass installation.
Brushed Stainless Heavy Duty Single Arm Column Mount Spider Fitting
- For Use with Glass Up to 1-1/16″ (27 mm)
- Complete with Hardware to Mount to Post or Column
- Glass Attachments are Sold Separately
- Use Monolithic Tempered Glass
This
CRL Single Arm Fitting is used to attach a single glass panel to a structural end post. Comes with a 16 x 99.5 mm (3-7/8″) stainless steel threaded stud and three matching nuts with washers. Replacement Stud Set is available.
For companion fitting use Cat. No. PMH2BS or PMH2PS Fittings.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Arms: 1
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Load Capacity: Heavy
Material: Stainless Steel (Alloy 316)
Mounting Application: Post
Shipping Limitations: None
Resources
- CRL Stainless Steel Disclaimer
- CRL Stainless Steel Spider Fittings Test Report
- Heavy Duty Spider Fittings System CAD Drawings.dwg
- Heavy Duty Spider Fittings System CAD Drawings.dwg
- Heavy Duty Spider Fittings System CAD Drawings.pdf
- Spider Fitting Glass Awning System CAD Drawings.dwg
- Spider Fitting Glass Awning System CAD Drawings.pdf
- Spider Fitting Installation Instructions
